10×40 Surface Covering Profile
It is a type of profile designed to be used in the creation of small-sized constructions. With this product, it is possible to provide the desired options in applications in narrow areas and to create units to which small system elements can be easily connected.
Description
It is a type of profile designed to be used in the creation of small-sized constructions. With this product, it is possible to provide the desired options in applications in narrow areas and to create units to which small system elements can be easily connected.
Technical Specifications
| Part Number / SKU | 1.1.06.010040.07 |
|---|---|

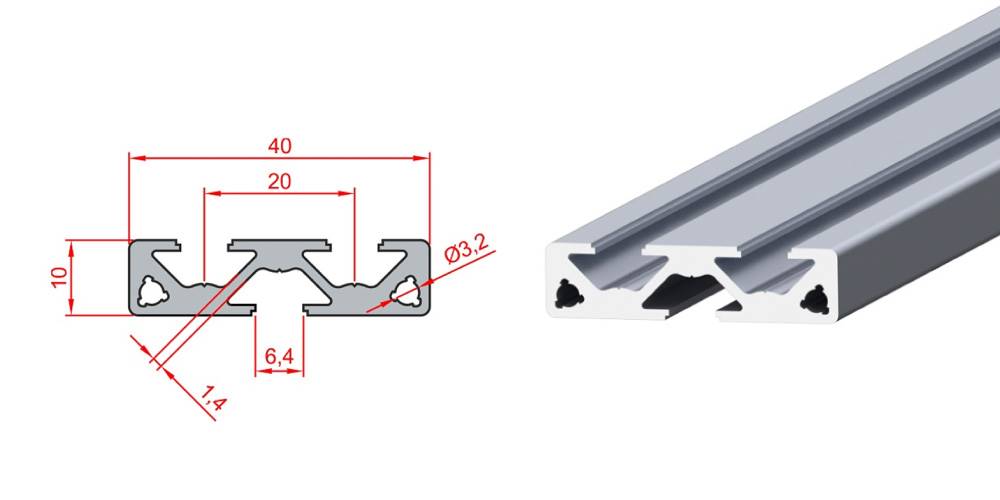

| Outer Dimensions | 10X40 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 0.20 cm⁴ |
| Moment of Inertia Iy (cm4) | 3.37 cm⁴ |
| Section Modulus Wx (cm3) | 0.38 cm³ |
| Section Modulus Wy (cm3) | 1.68 cm³ |
| Cross-Section Area (cm2) | 2.04 cm² |
| Mass / Weight (kg/m) | 0.55 Kg/m |
