18×37 Sliding Rail Profile Slot 10

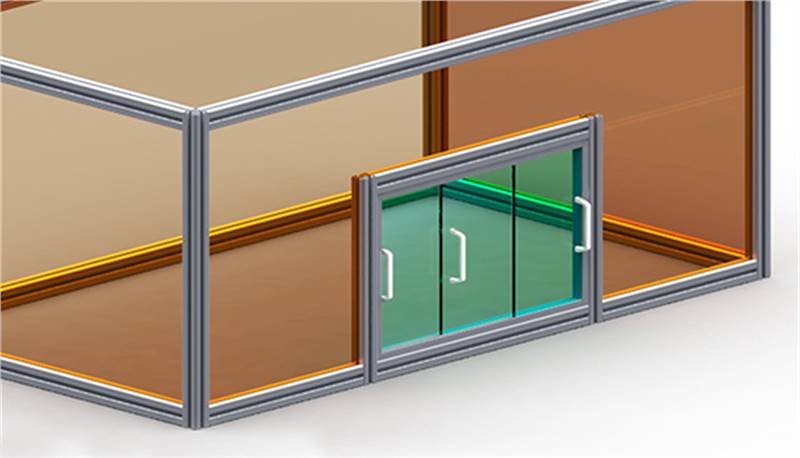

It is designed for the use of sliding doors of cabinets and compartments and provides great ease of installation. Secure connections can be created by fixing and attaching the 30-series profiles to the channel from any desired location with M5 bolts.
Description
It is designed for the use of sliding doors of cabinets and compartments and provides great ease of installation. Secure connections can be created by fixing and attaching the 30-series profiles to the channel from any desired location with M5 bolts.

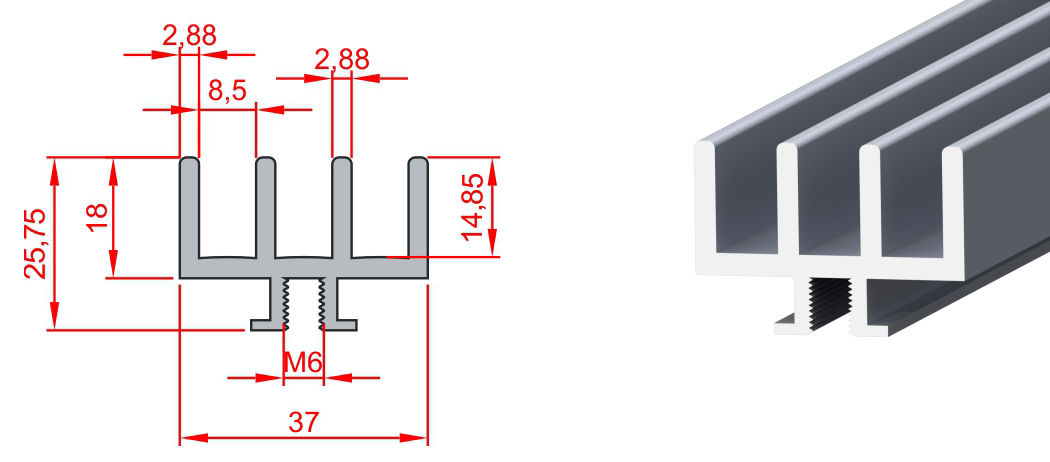

Technical Specifications
| Part Number / SKU | 1.2.00.018037.00 |
|---|---|
| Outer Dimensions | 18×37 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 1.37 cm⁴ |
| Moment of Inertia Iy (cm4) | 4.15 cm⁴ |
| Section Modulus Wx (cm3) | 1.05 cm³ |
| Section Modulus Wy (cm3) | 2.25 cm³ |
| Cross-Section Area (cm2) | 3.28 cm² |
| Mass / Weight (kg/m) | 0.89 Kg/m |
