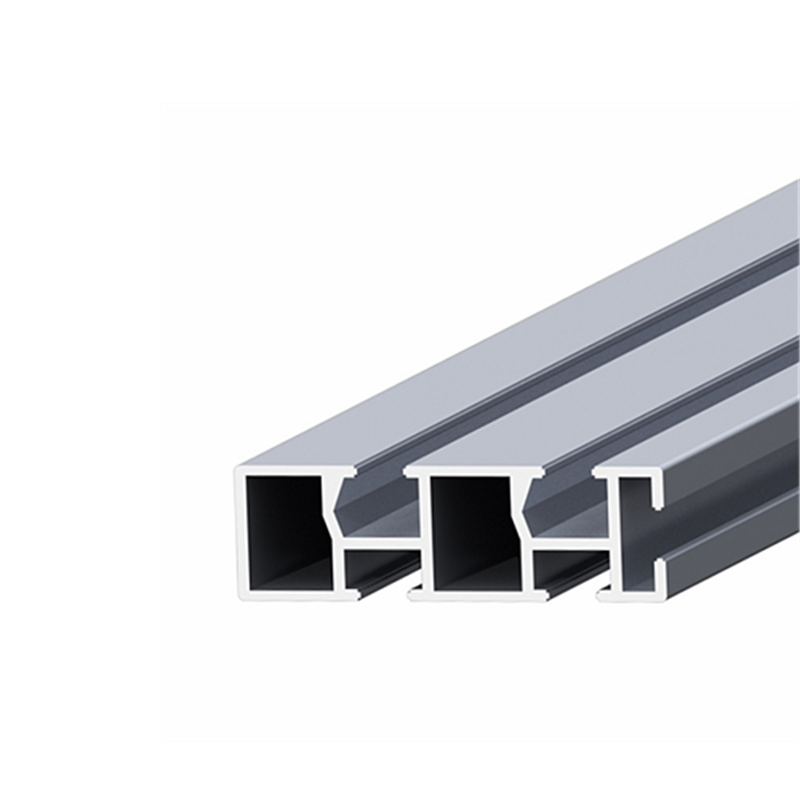

23×75 Conveyor Beam Profile
They are used in the production of main body parts of different conveyor systems. Practical installation opportunity is provided with easily integrated connection equipment and accessories.
Description
They are used in the production of main body parts of different conveyor systems. Practical installation opportunity is provided with easily integrated connection equipment and accessories.
Technical Specifications
| Part Number / SKU | 1.2.00.023075.00 |
|---|---|

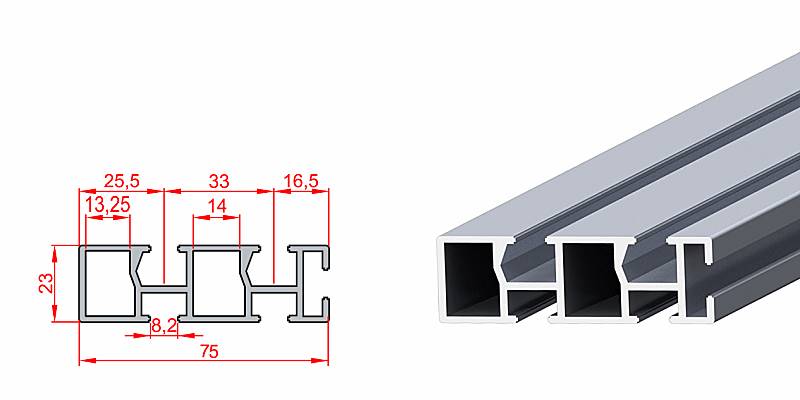

| Outer Dimensions | 23X75 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 3.11 cm⁴ |
| Moment of Inertia Iy (cm4) | 26.02 cm⁴ |
| Section Modulus Wx (cm3) | 2.70 cm³ |
| Section Modulus Wy (cm3) | 6.94 cm³ |
| Cross-Section Area (cm2) | 4.85 cm² |
| Mass / Weight (kg/m) | 1.33 Kg/m |
