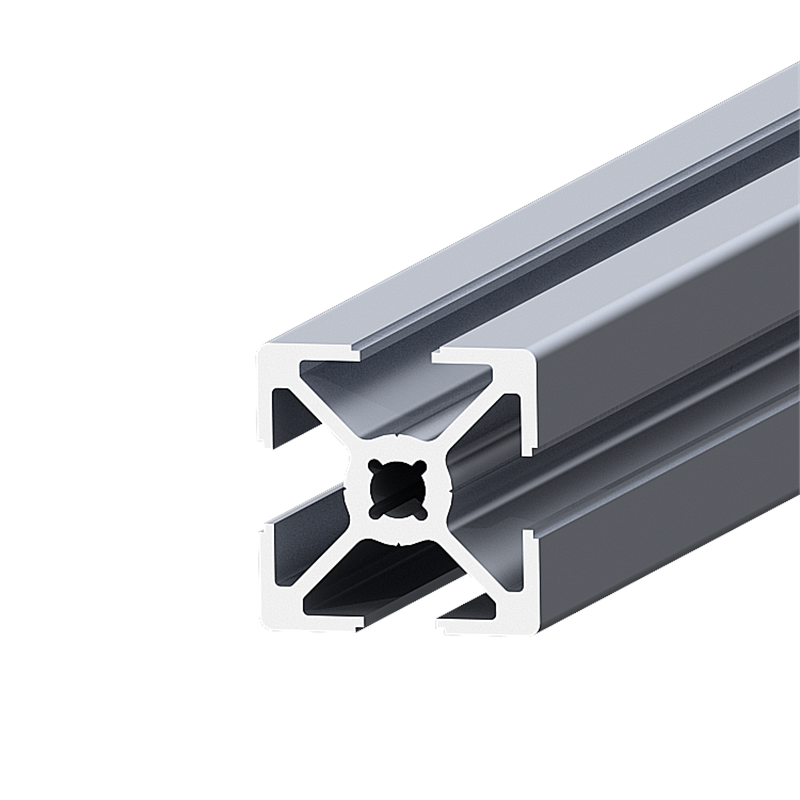

25×25 T-Slot Aluminum Profile
It is preferred to be used in applications that do not require installation, such as cabinet covers, frames and panels.
Description
It is preferred to be used in applications that do not require installation, such as cabinet covers, frames and panels.
Technical Specifications
| Part Number / SKU | 1.1.06.025025.01 |
|---|---|

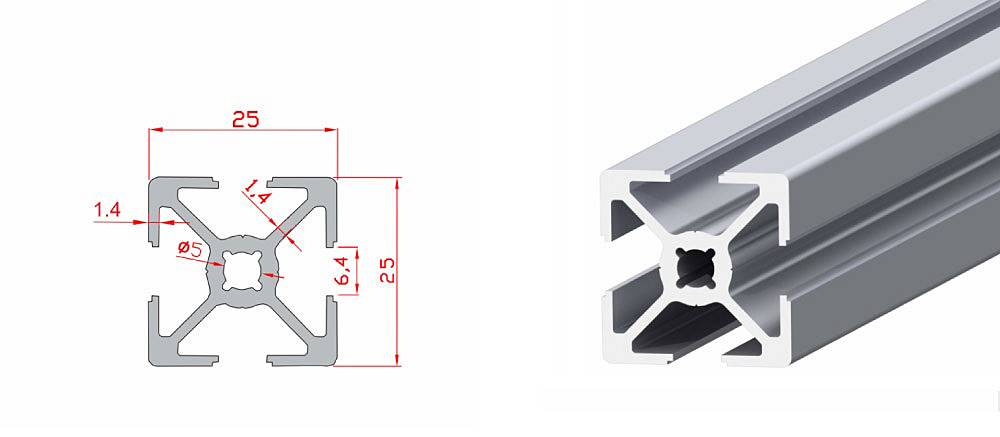

| Outer Dimensions | 25×25 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 1.39 cm4 |
| Moment of Inertia Iy (cm4) | 1.39 cm4 |
| Section Modulus Wx (cm3) | 1.11 cm³ |
| Section Modulus Wy (cm3) | 1.11 cm³ |
| Cross-Section Area (cm2) | 2.12 cm² |
| Mass / Weight (kg/m) | 0.56 Kg/m |
