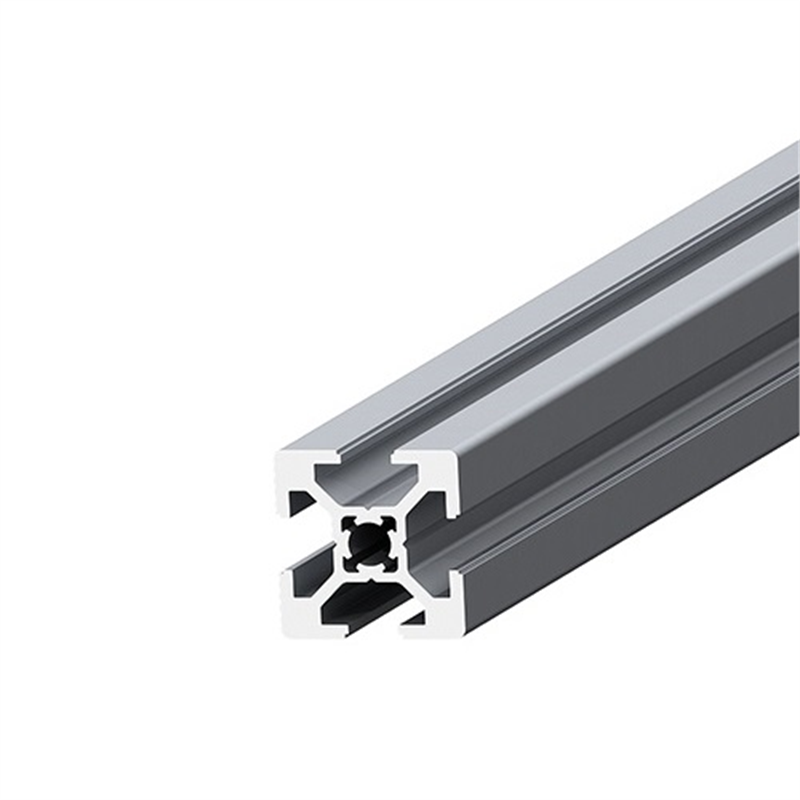

30×30 Heavy T-Slot Aluminum Profile

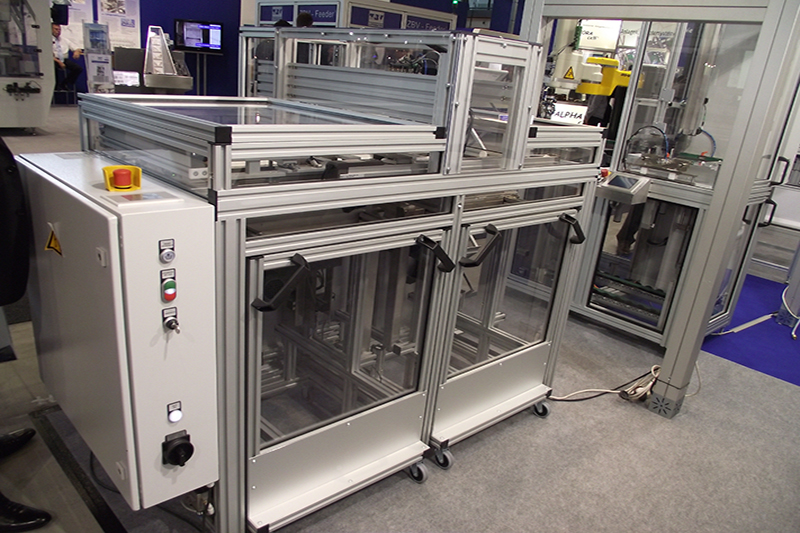

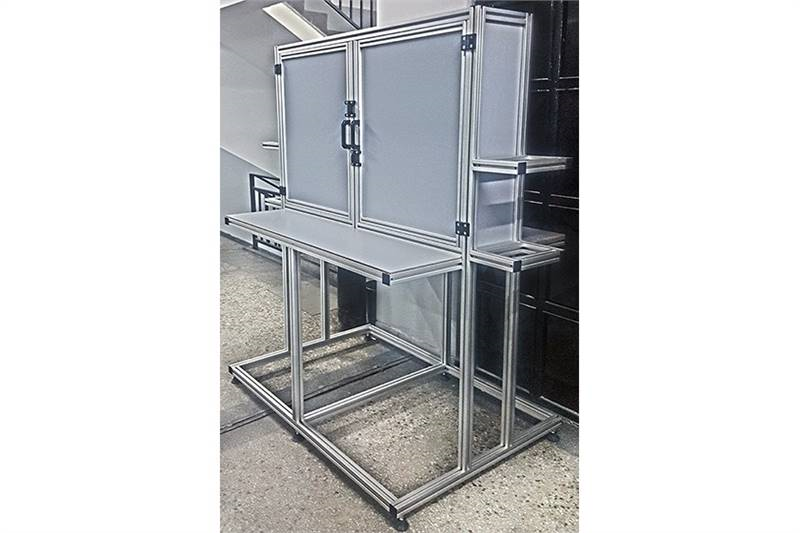

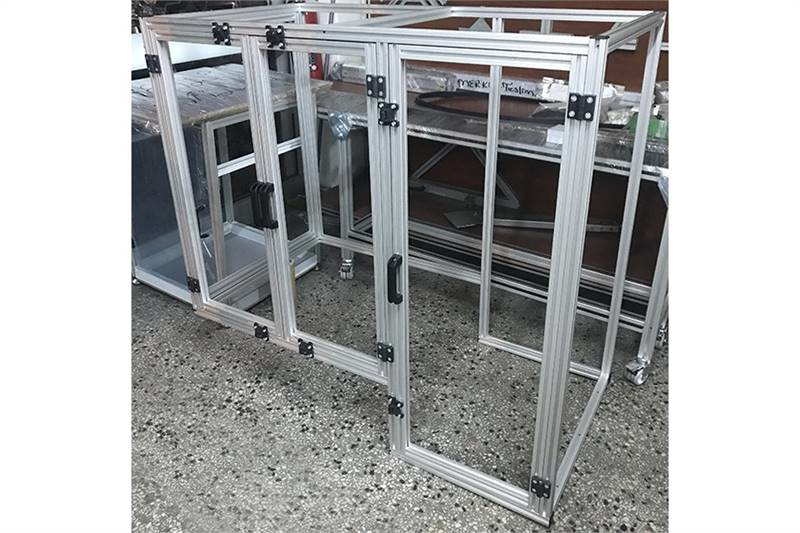

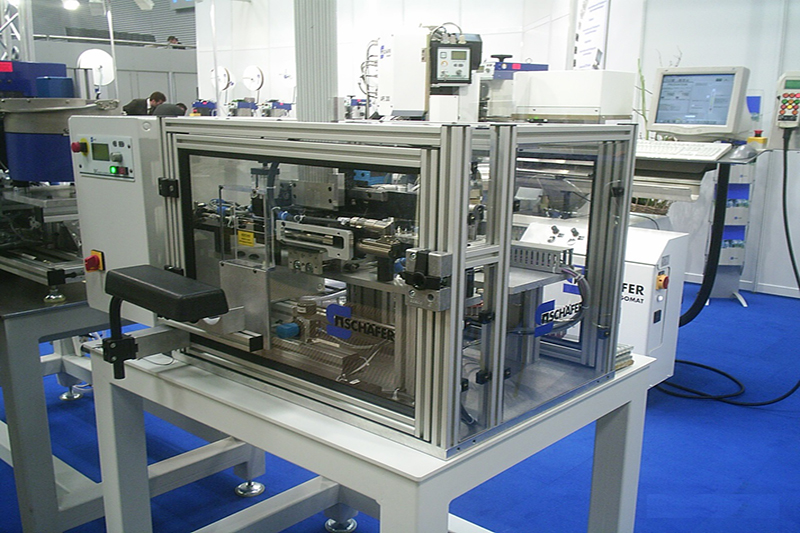

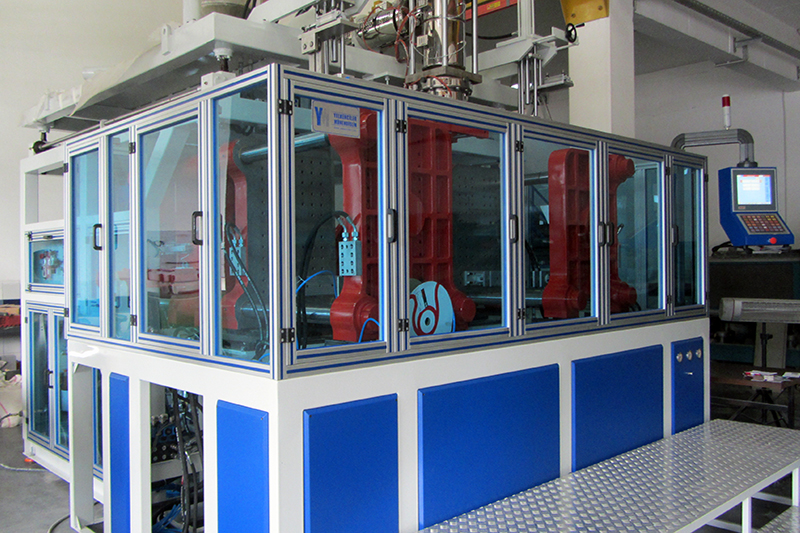

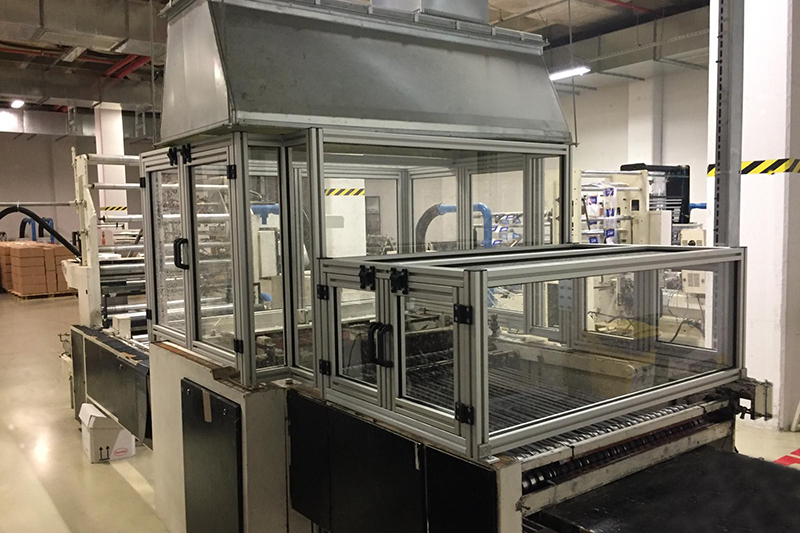

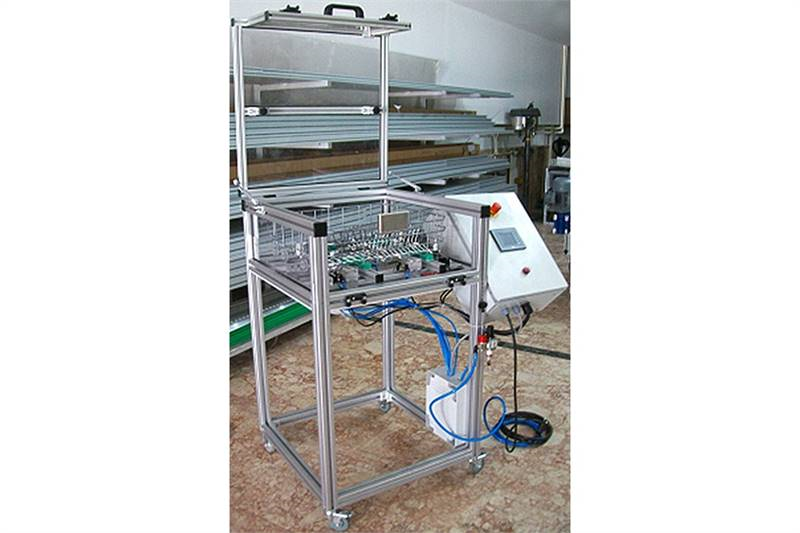

These series, which are generally used in machine cabin construction, are also preferred in light construction applications and in the construction of panels and display stands.
Description
These series, which are generally used in machine cabin construction, are also preferred in light construction applications and in the construction of panels and display stands.
Technical Specifications
| Part Number / SKU | 1.1.08.030030.01 |
|---|---|

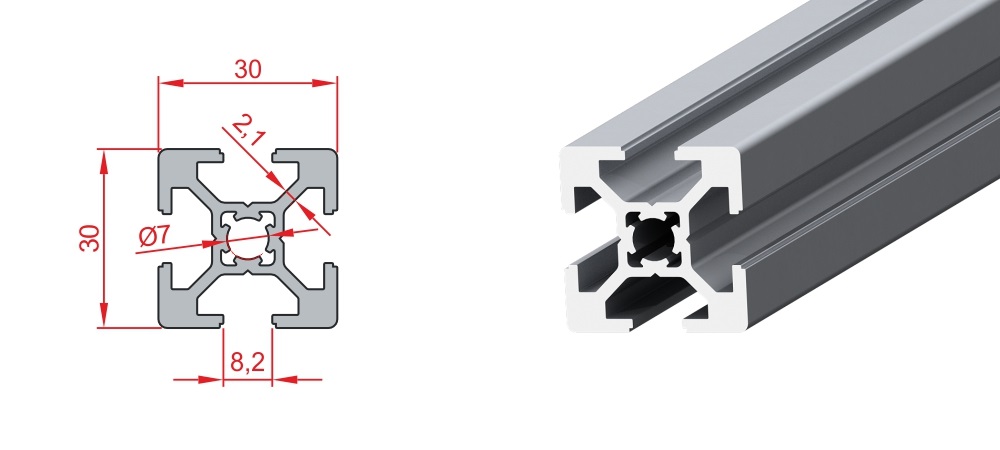

| Outer Dimensions | 30×30 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 3.56 cm4 |
| Moment of Inertia Iy (cm4) | 3.56 cm4 |
| Section Modulus Wx (cm3) | 2.38 cm3 |
| Section Modulus Wy (cm3) | 2.38 cm3 |
| Cross-Section Area (cm2) | 3.62 cm2 |
| Mass / Weight (kg/m) | 0.97 Kg/m |
