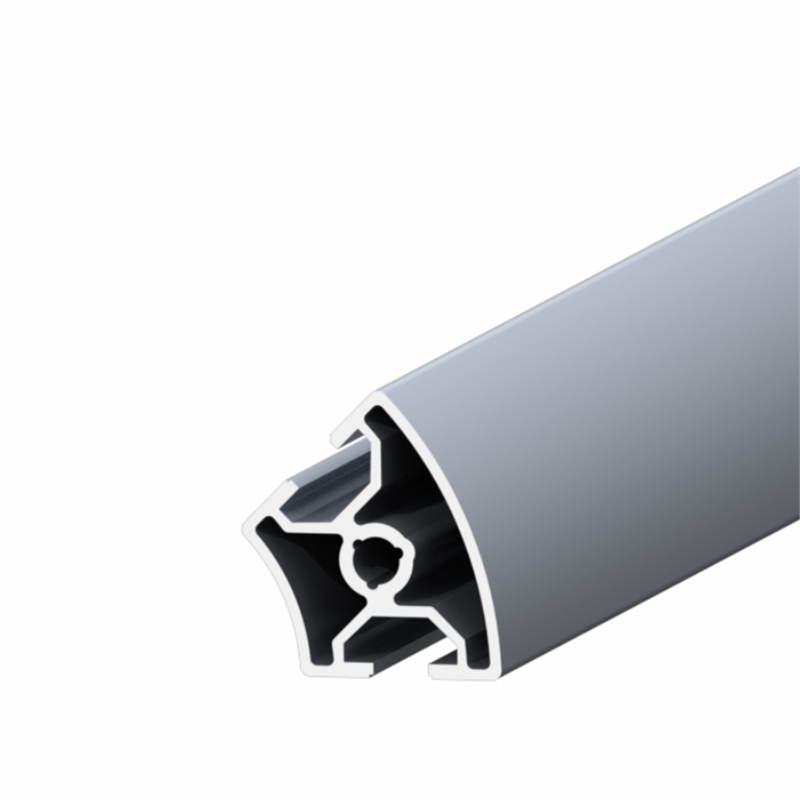

30×45 Graduated Profile
It has a 45° angle and can be easily integrated. With its stylish design, it provides an aesthetic appearance in machine cabins and corners of tables.
Description
It has a 45° angle and can be easily integrated. With its stylish design, it provides an aesthetic appearance in machine cabins and corners of tables.
Technical Specifications
| Part Number / SKU | 1.1.08.030045.08 |
|---|---|

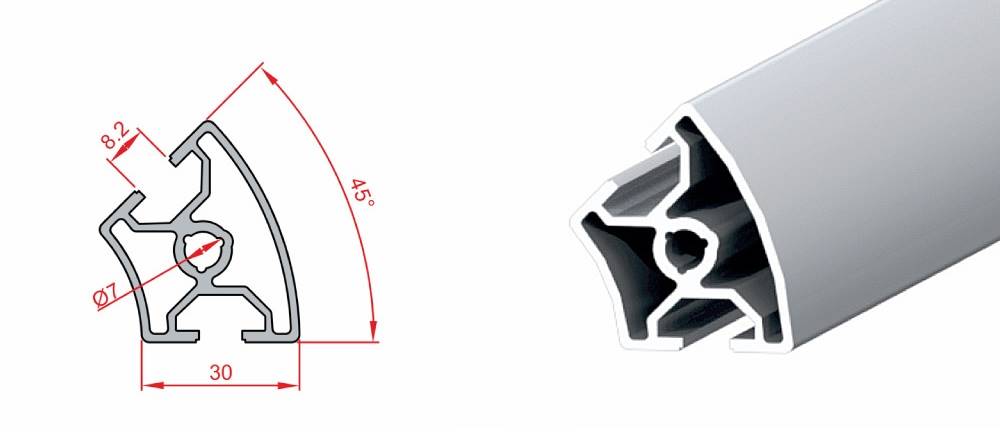

| Outer Dimensions | 30×45 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 4.37 cm4 |
| Moment of Inertia Iy (cm4) | 3.22 cm4 |
| Section Modulus Wx (cm3) | 1.78 cm³ |
| Section Modulus Wy (cm3) | 1.62 cm³ |
| Cross-Section Area (cm2) | 3.36 cm² |
| Mass / Weight (kg/m) | 0.91 Kg/m |
