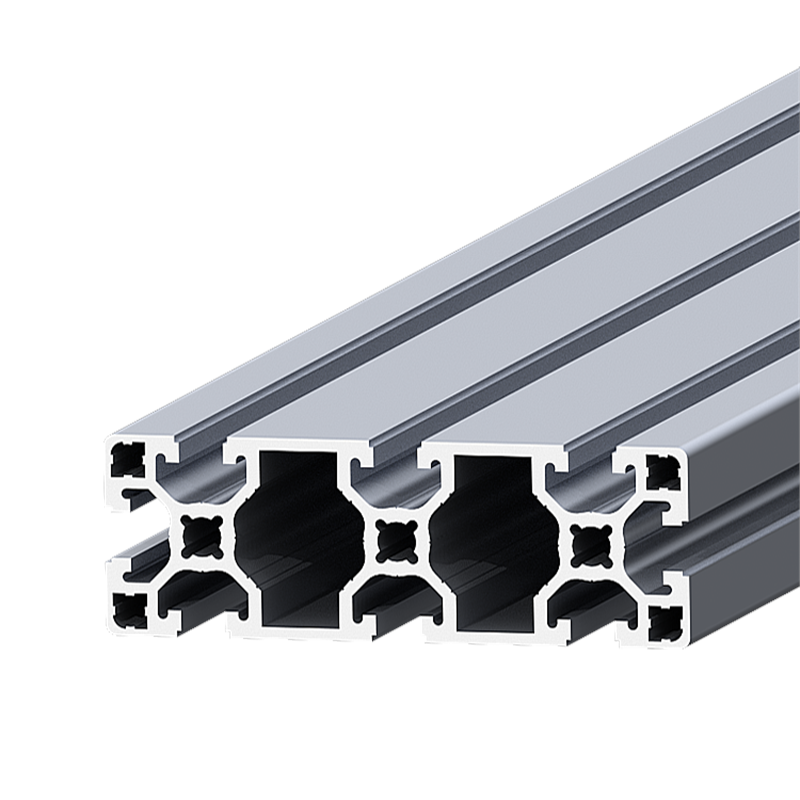

45×135 T-Slot Aluminum Profile
It is suitable for use in machine chassis and bearings that require high strength. It provides strong connection thanks to its 3-channel feature.
Description
It is suitable for use in machine chassis and bearings that require high strength. It provides strong connection thanks to its 3-channel feature.
Technical Specifications
| Part Number / SKU | 1.1.10.045135.02 |
|---|---|

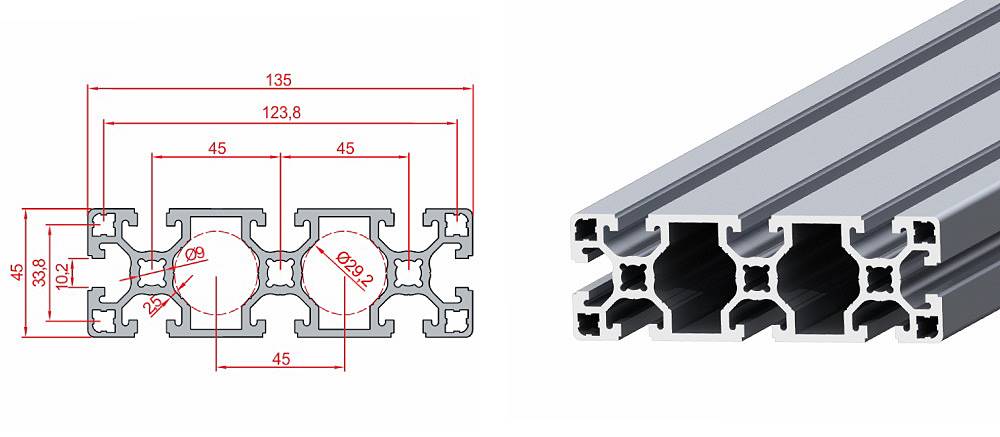

| Outer Dimensions | 45×135 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 42.12 cm4 |
| Moment of Inertia Iy (cm4) | 329.17 cm4 |
| Section Modulus Wx (cm3) | 18.72 cm³ |
| Section Modulus Wy (cm3) | 48.77 cm³ |
| Cross-Section Area (cm2) | 18.45 cm² |
| Mass / Weight (kg/m) | 5.00 Kg/m |
