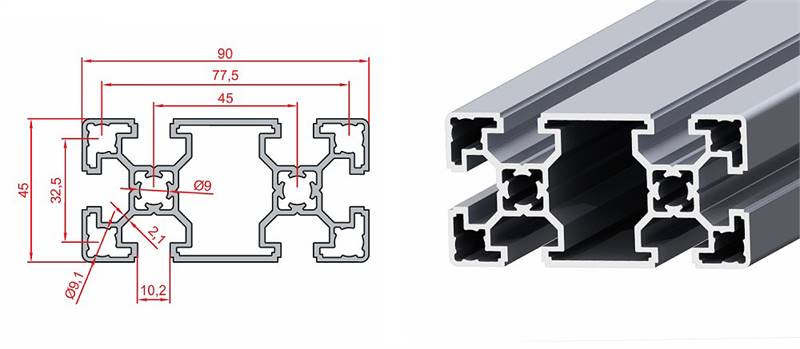

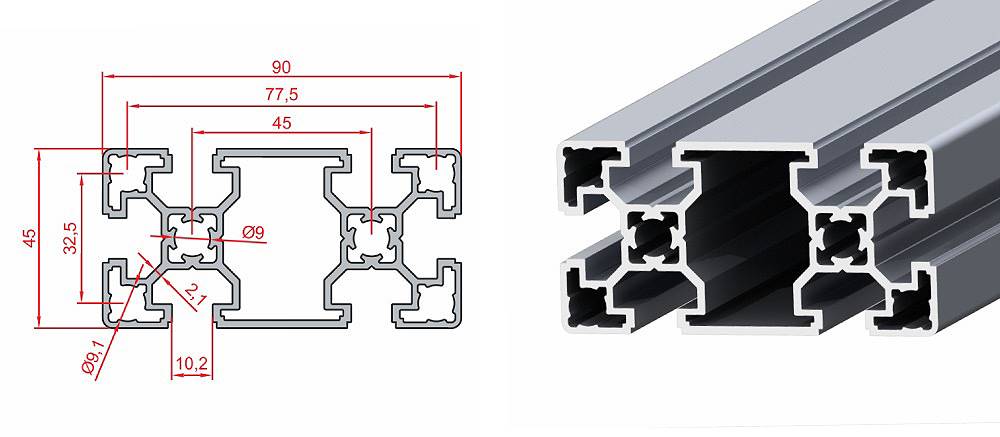

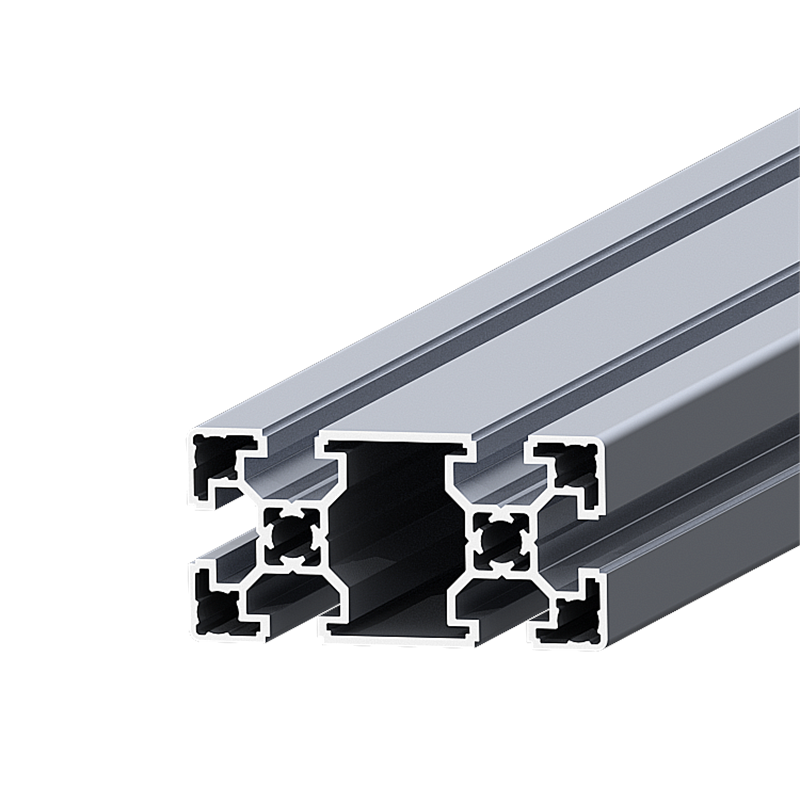

45×90 Light T-Slot Aluminum Profile
Light series are preferred in low vibration automation applications and light type construction formations that are not exposed to load.
Description
Light series are preferred in low vibration automation applications and light type construction formations that are not exposed to load.
Technical Specifications
| Part Number / SKU | 1.1.10.045090.02 |
|---|---|
| Outer Dimensions | 45×90 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 20.74 cm4 |
| Moment of Inertia Iy (cm4) | 78.97 cm4 |
| Section Modulus Wx (cm3) | 9.22 cm³ |
| Section Modulus Wy (cm3) | 17.55 cm³ |
| Cross-Section Area (cm2) | 9.63 cm² |
| Mass / Weight (kg/m) | 2.58 Kg/m |
