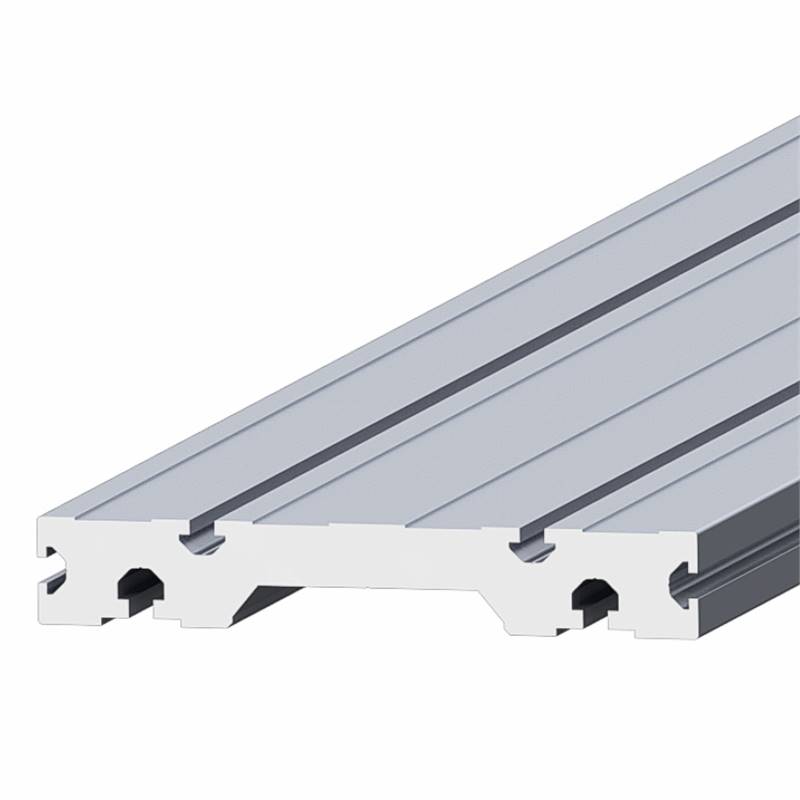

27×170 Surface Coating Profile
Description
A stronger plating profile with wider surface than other series.

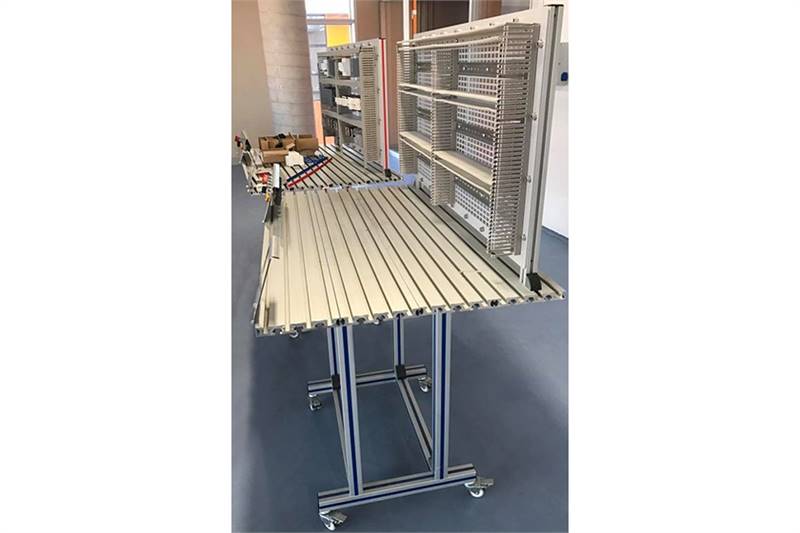

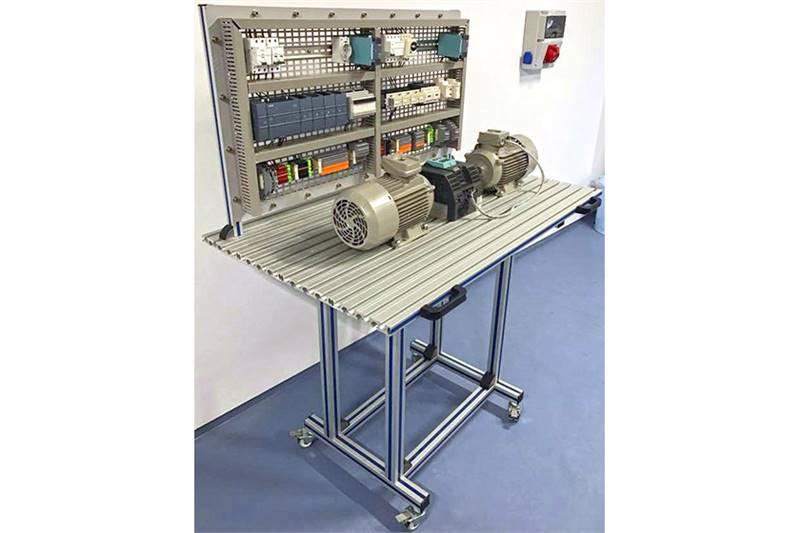

Used on upper and side surface plating etc. of heavy-duty machine tables.
Ensures reliable connection of mechanic and pneumatic parts thanks to strong wall structure.
Additional information

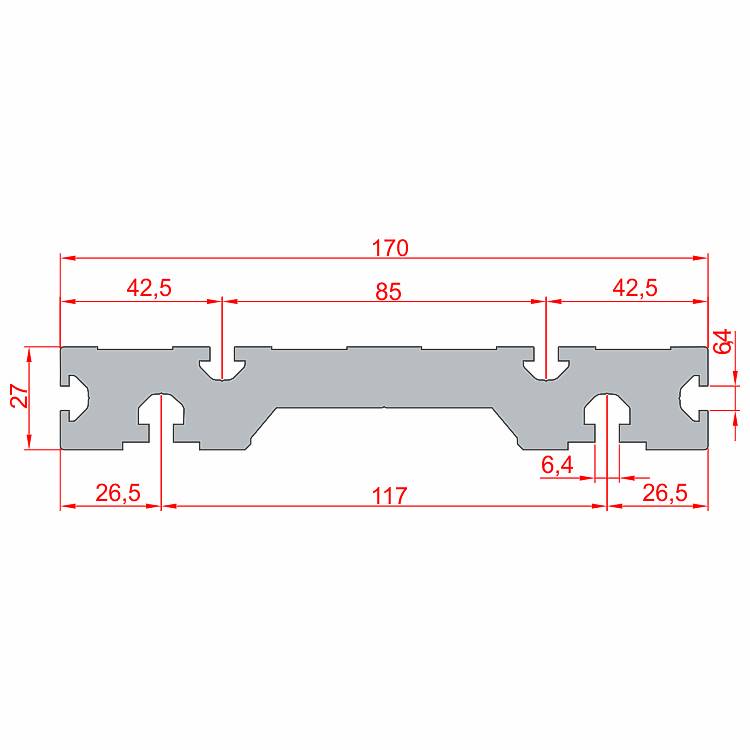

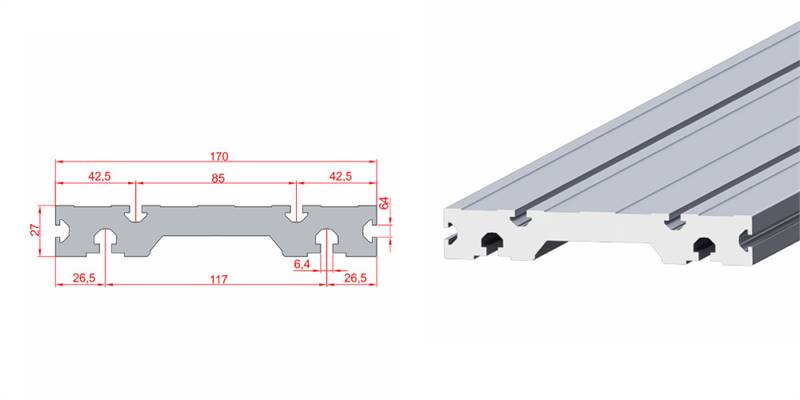

| External Dimensions | 27×170 |
|---|---|
| Material | 6063 T5 |
| L(mm) | 6000 |
| Ix | 16.86 cm4 |
| Iy | 852.78 cm4 |
| Wx | 10.98 cm³ |
| Wy | 100.33 cm³ |
| Area | 32.44 cm² |
| Mass | 8.92 Kg/m |
