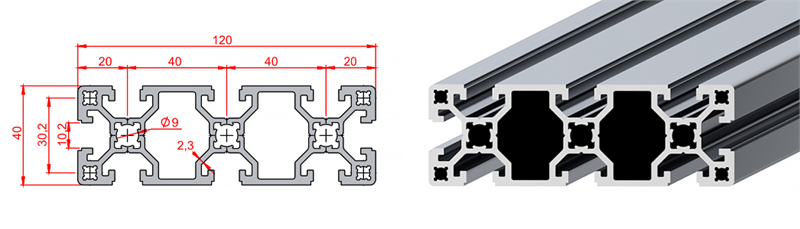

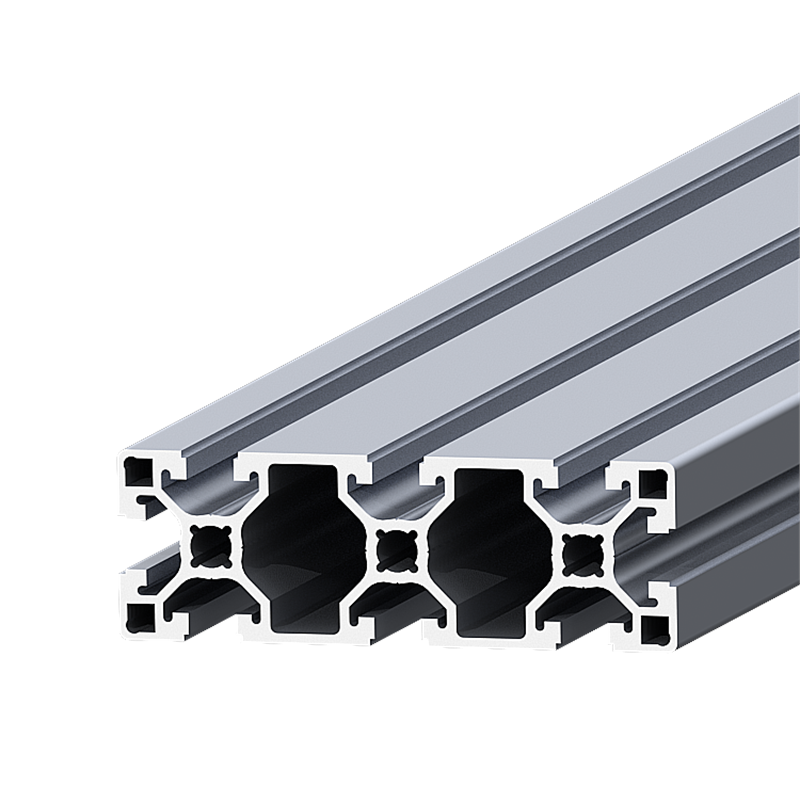

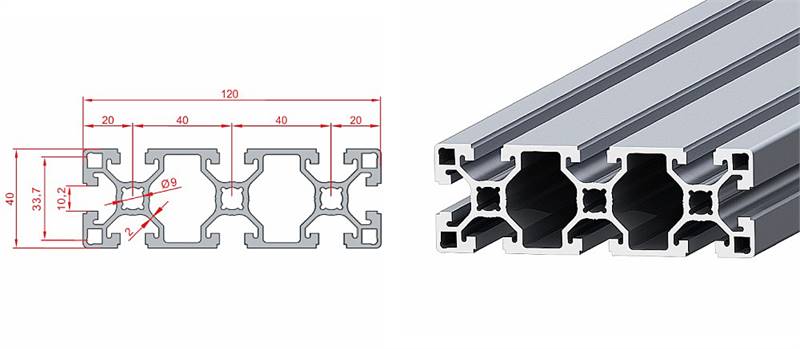

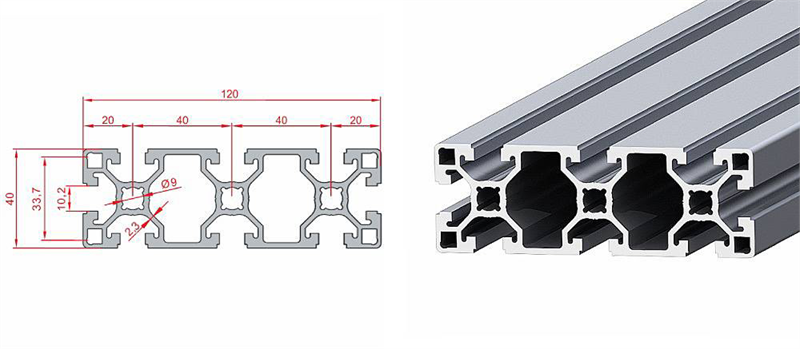

40×120 Sigma Profile
Description

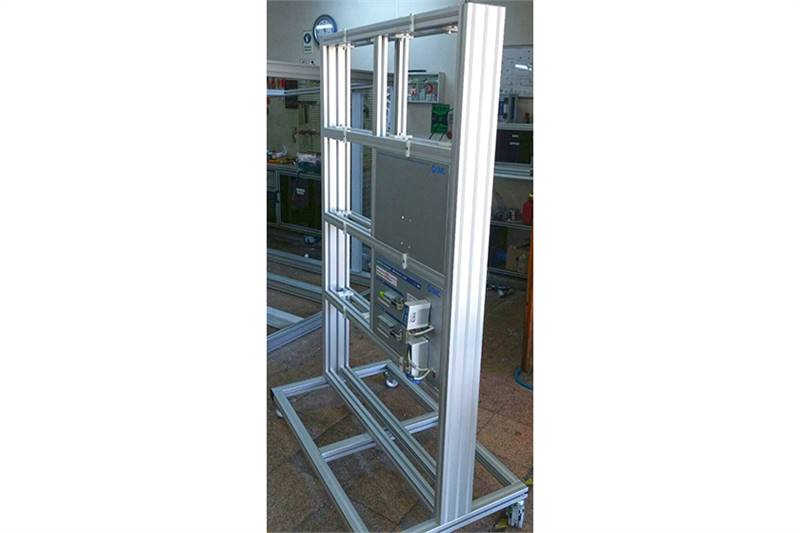

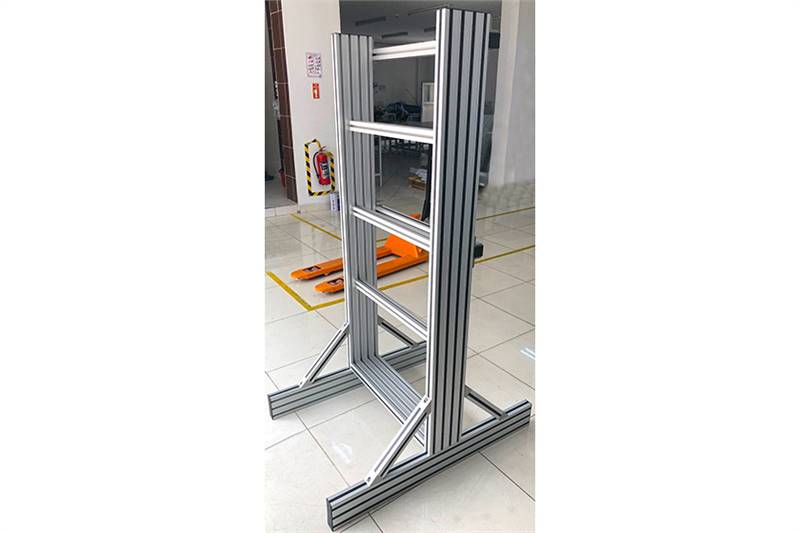

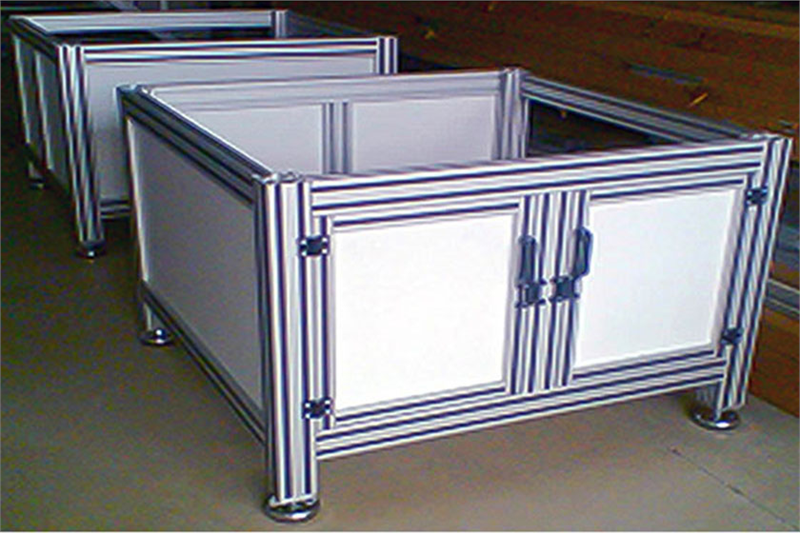

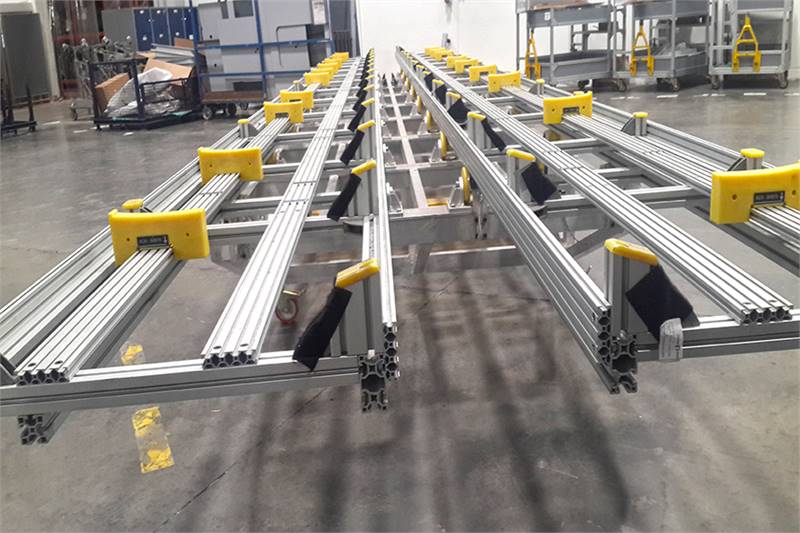

It is preferred to be used in machine constructions exposed to load and resistant chassis applications.
Thanks to its 3-channel feature, it provides strong connection.
An elegant appearance can be obtained by closing the unused channels.
Additional information
| External Dimensions | 40×120 |
|---|---|
| Material | 6063 T5 |
| L(mm) | 6000 |
| Ix | 26.65 cm4 |
| Iy | 210.46 cm4 |
| Wx | 13.33 cm³ |
| Wy | 35.08 cm³ |
| Area | 14.34 cm² |
| Mass | 3.87 Kg/m |
