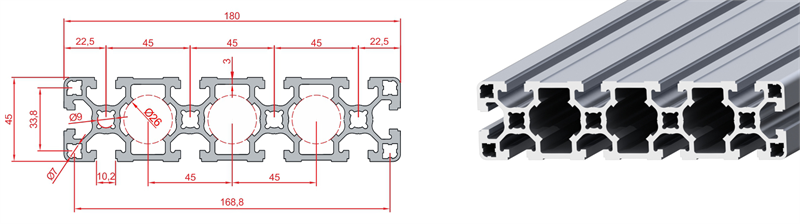

45×180 Sigma Profile
Description
Thanks to strong physical structure, these profile series are preferred on frame of machines that require resistance and on formations of side frames.
Besides, they are available for assembly of 3 central linear ball-bearings of 26 mm diameter that provide slide bearing feature for the design.
Additional information
| External Dimensions | 45×180 |
|---|---|
| Material | 6063 T5 |
| L(mm) | 6000 |
| Ix | 57.23 cm4 |
| Iy | 760.57 cm4 |
| Wx | 25.44 cm³ |
| Wy | 84.51 cm³ |
| Area | 25.25 cm² |
| Mass | 6.90 Kg/m |
