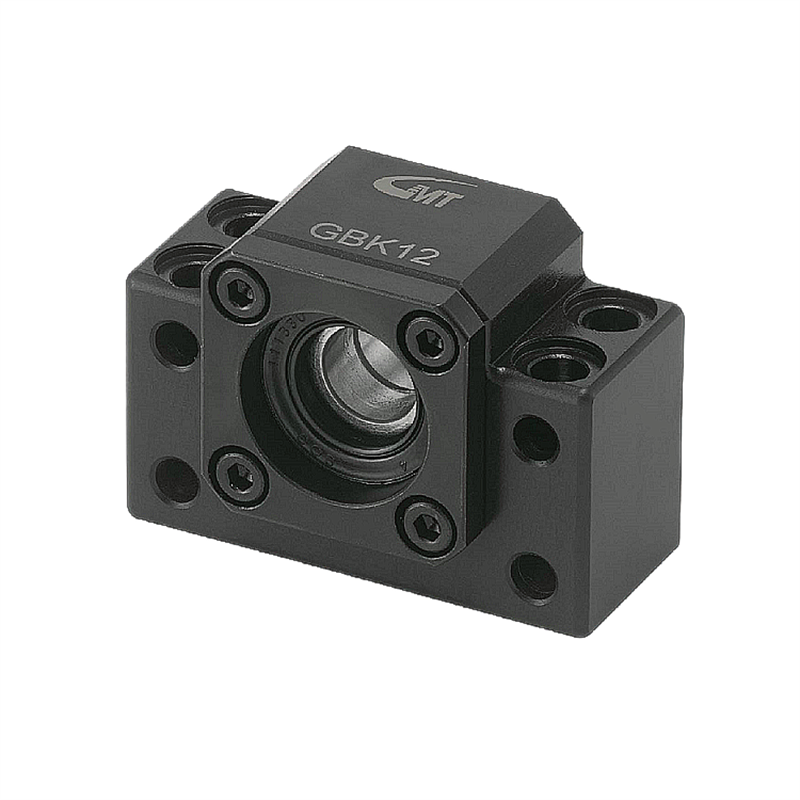

BK Ball Screw End Bearings
Description
They ensure bedding and fixing screws of various diameter to the mechanism from two headings.
One end of the screw is fixed on the bearing in order to meet both radial and axial loads.
These bearings enable sensitive positioning during motion.
Additional information
| Brand | DUP |
|---|---|
| Type | BK 10 |
| Ød | 10 |
| T | 25 |
| T1 | 5 |
| T2 | 29,5 |
| T3 | 5 |
| W | 60 |
| W1 | 34 |
| H | 39 |
| H1 | 32,5 |
| N | 30 |
| C | 22 |
| P | 46 |
| P1 | 13 |
| P2 | 13 |
| P3 | 6 |
| Ød1 | 6,3 |
| Ød2 | 10,5 |
| Z | 1,5 |
| Ød3 | 5,5 |
