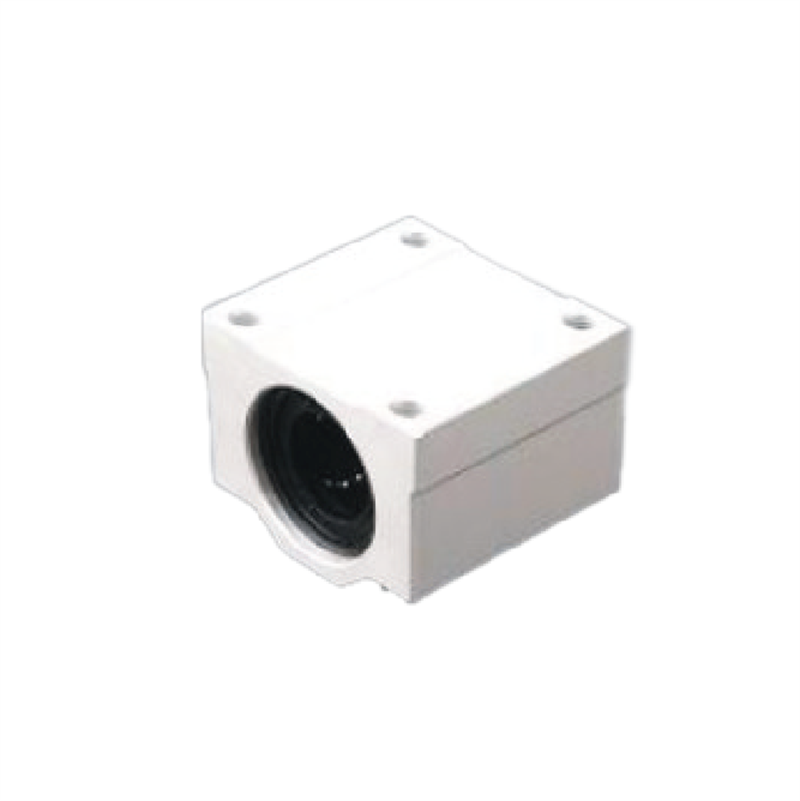

SCE UU Series
Description
Closed linear ball bearings are used together with non-perforated inslotion shafts where the loading is lower.
Preferred in areas where connection has to be narrow.
Additional information
| Type | SCE 8 UU |
|---|---|
| H | 22 |
| D | 17 |
| W | 34 |
| G | 18 |
| A | 6 |
| J | 24 |
| E | 5 |
| S1X1 | M4x8 |
| S2 | 3,4 |
| Dynamic Kg | 274 |
| Static Kg | 392 |
| Weight (gr) | 52 |
| K | 18 |
| L | 30 |
