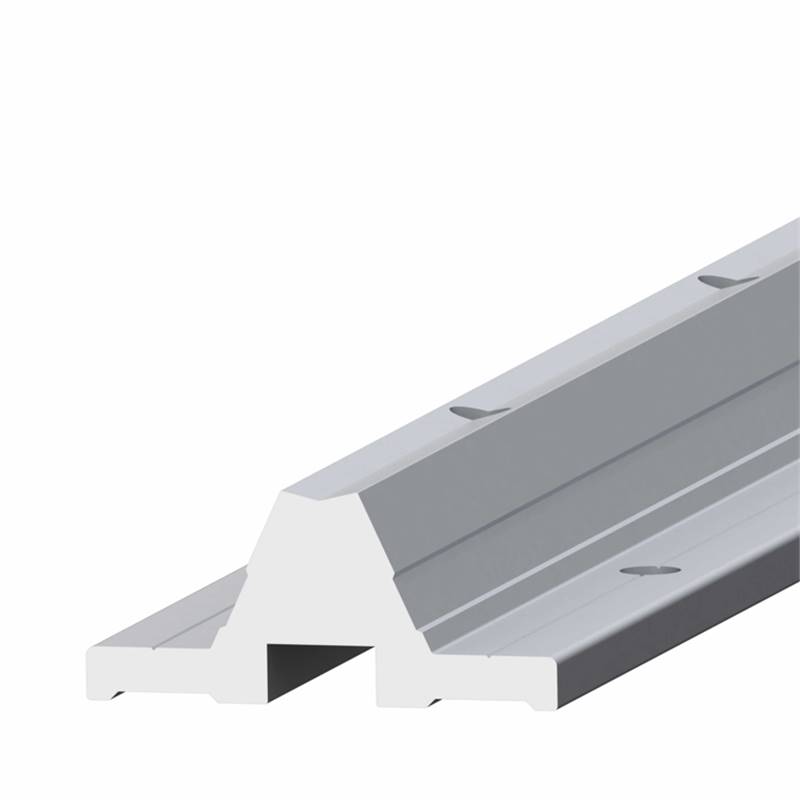

Shaft Sub-Support Profile (Perforated)
Description
Beddings with shaft sub-support stand out for availability in longer applications and ensuring practical connections.
Since the shaft has a sub-support all along, it does not cause deflection; thereupon, the problem of linearity is minimized in longer sizes.
Additional information

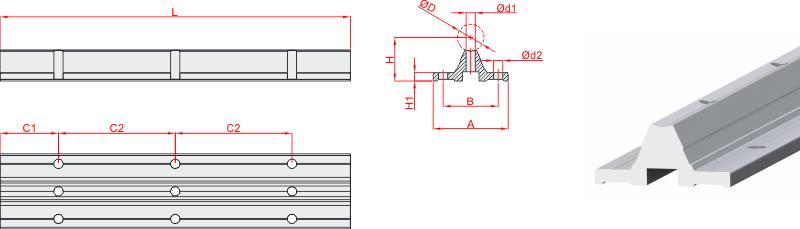

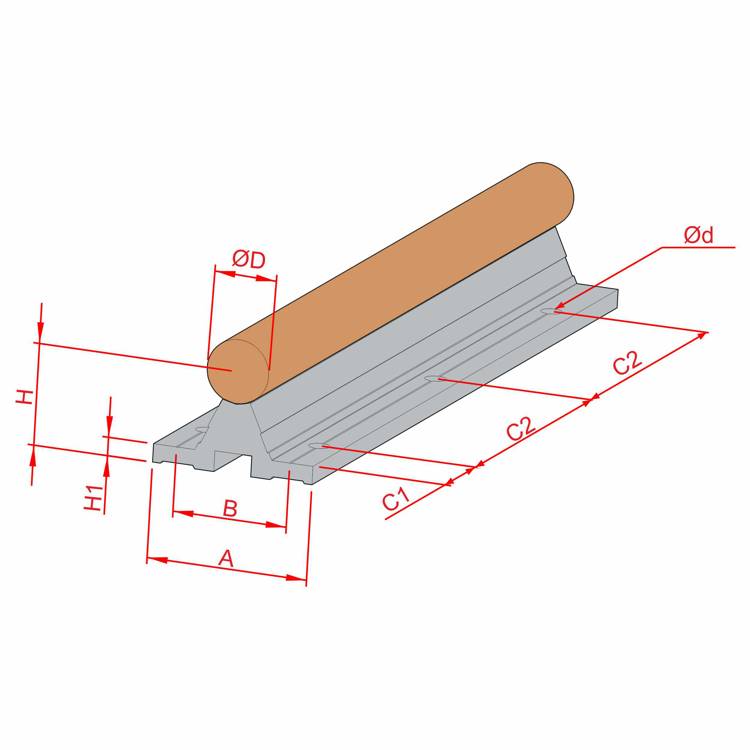

| ØD | Ø20 |
|---|---|
| B | 37 |
| A | 52 |
| H | 32 |
| h1 | 5,8 |
| Ød1 | Ø6,6 |
| Ød2 | Ø6,6 |
| C1 | 50 |
| C2 | 100 |
| L | 6000 |
| Weight (Kg/Mt) | 1.242 |
