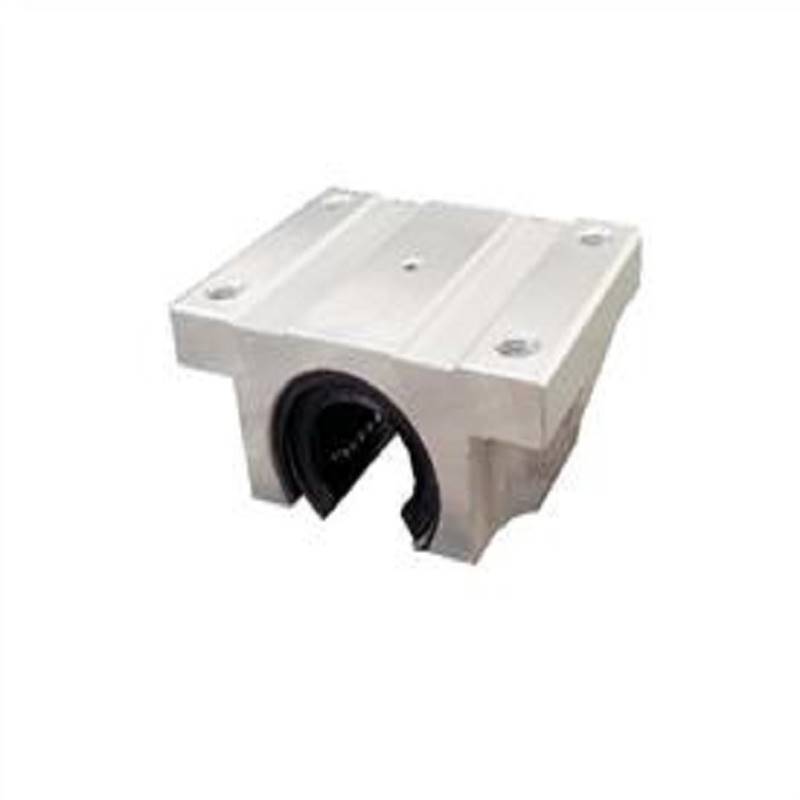

TBR UU Series
Description
On beddings with shaft sub-support, the linear ball bearing group can be connected to the system via wider cage blocks.
Wide cage block enables high moment, stabile bedding and easy integration.
These ball bearing types can be preferred in machine and automation systems.
Additional information
| Type | TBR 30 |
|---|---|
| W | 91 |
| G | 48 |
| A | 12 |
| M | 75 |
| S1 | M8 |
| J | 75 |
| K | 60 |
| h | 33.5 |
| H1 | 15.5 |
| Dynamic Kg | 1764 |
| Static Kg | 2940 |
| Weight (gr) | 0.90 |
