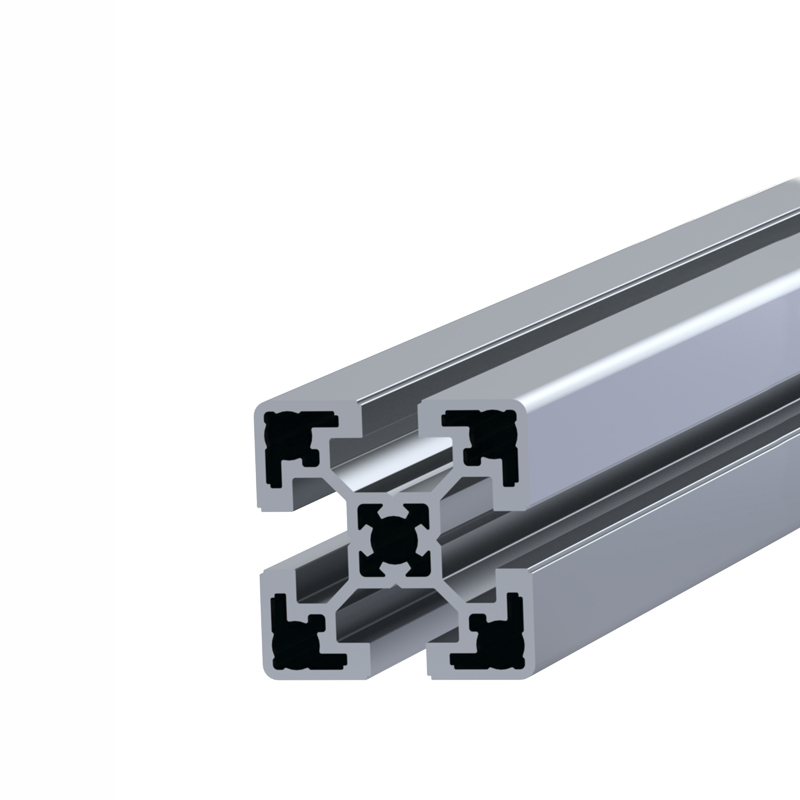

40×40 Light T-Slot Aluminum Profile
It is a medium series profile and is suitable for use in conveyor foot groups, work and assembly tables.
Description
It is a medium series profile and is suitable for use in conveyor foot groups, work and assembly tables.
Technical Specifications
| Part Number / SKU | 1.1.08.040040.02 |
|---|---|

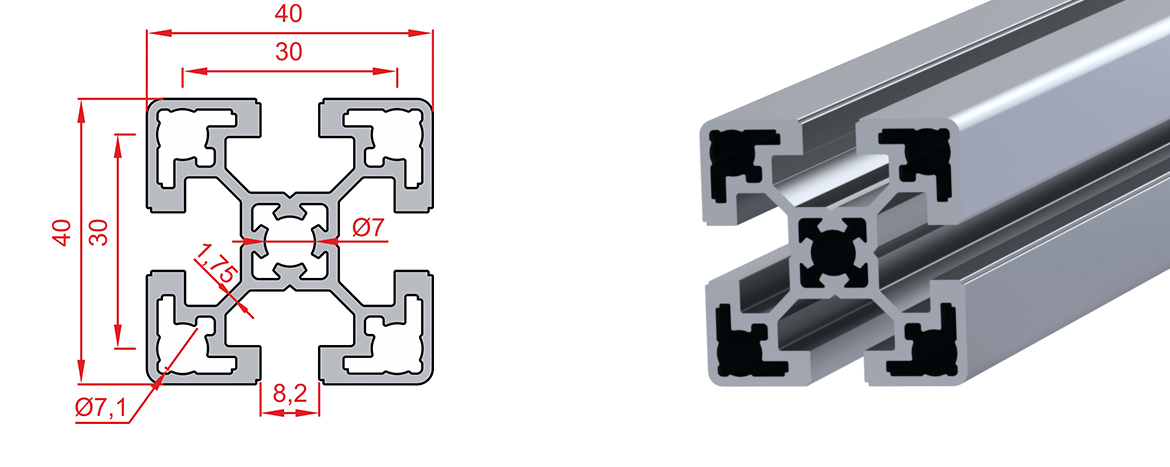

| Outer Dimensions | 40×40 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 8.49 cm4 |
| Moment of Inertia Iy (cm4) | 8.49cm³ |
| Section Modulus Wx (cm3) | 4.25 cm³ |
| Section Modulus Wy (cm3) | 4.25 cm² |
| Cross-Section Area (cm2) | 5.40 cm² |
| Mass / Weight (kg/m) | 1.44 Kg/m |
