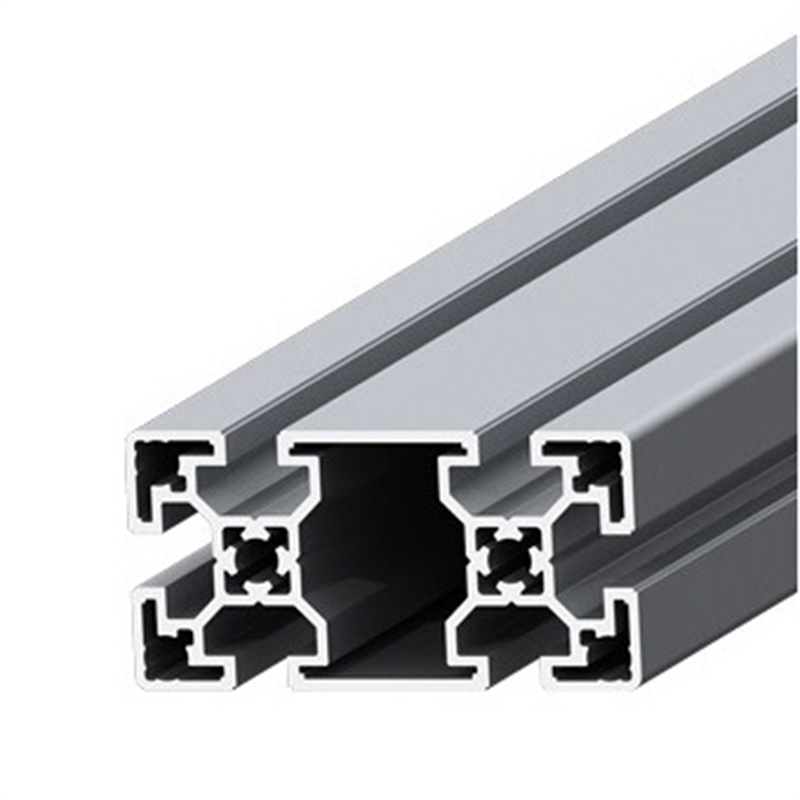

40×80 Light T-Slot Aluminum Profile

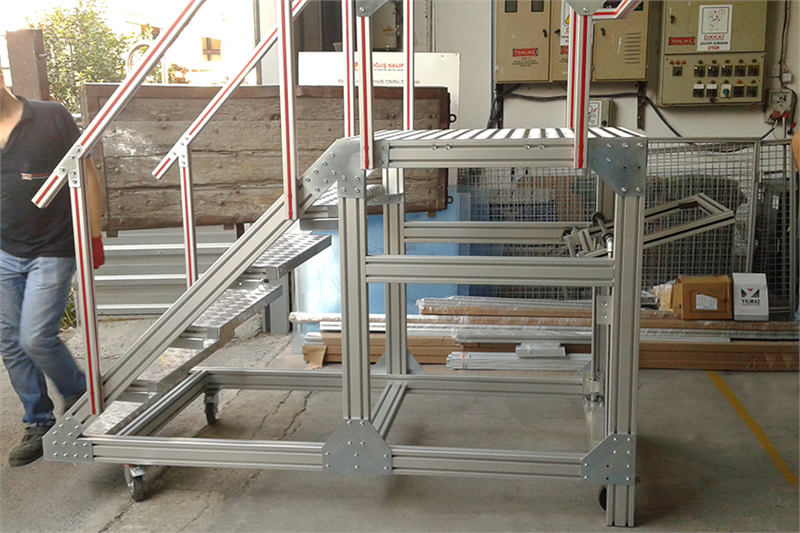

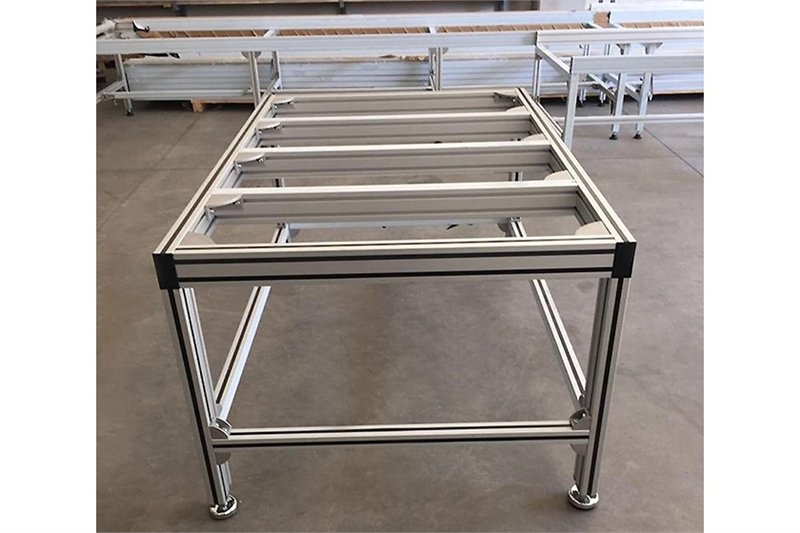

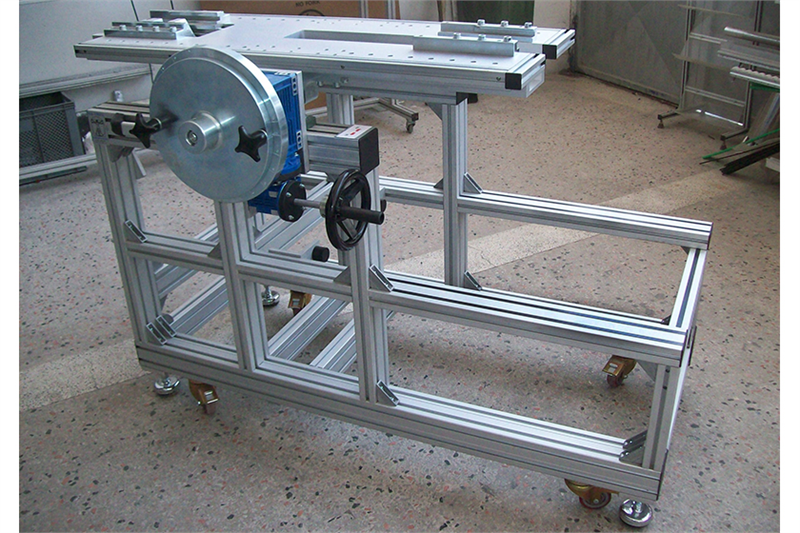

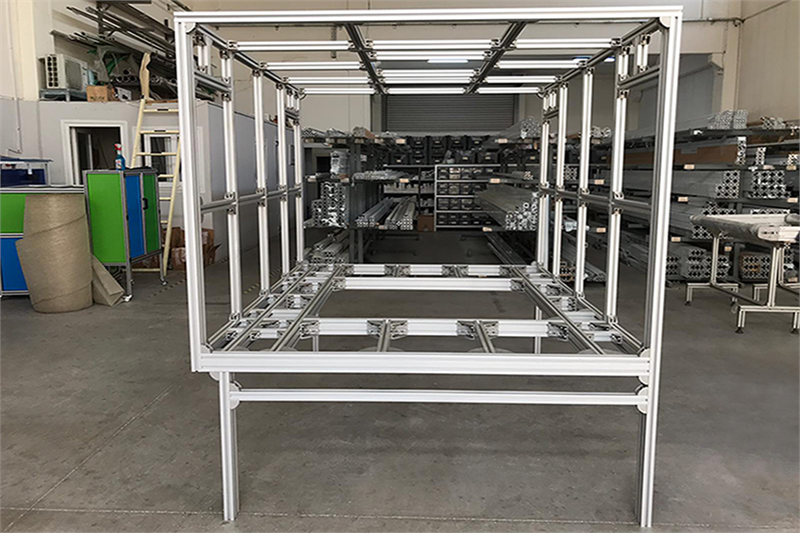

It is used as a carrier profile in machine chassis and large constructions that require high strength. Slide pins etc. that can be integrated into channels. It can also be used as a sliding window chassis with these products.
Description
It is used as a carrier profile in machine chassis and large constructions that require high strength. Slide pins etc. that can be integrated into channels. It can also be used as a sliding window chassis with these products.
Technical Specifications
| Part Number / SKU | 1.1.08.040080.02 |
|---|---|

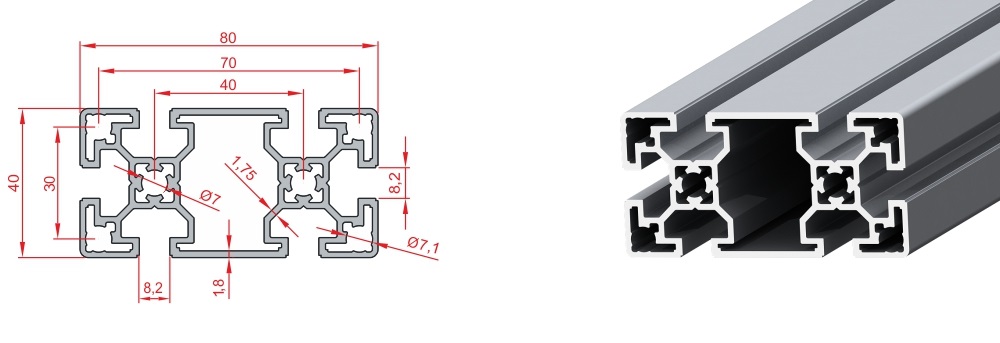

| Outer Dimensions | 40×80 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 14.44 cm4 |
| Moment of Inertia Iy (cm4) | 56.51 cm4 |
| Section Modulus Wx (cm3) | 7.22 cm3 |
| Section Modulus Wy (cm3) | 14.13 cm3 |
| Cross-Section Area (cm2) | 8.48 cm2 |
| Mass / Weight (kg/m) | 2.30 Kg/m |
