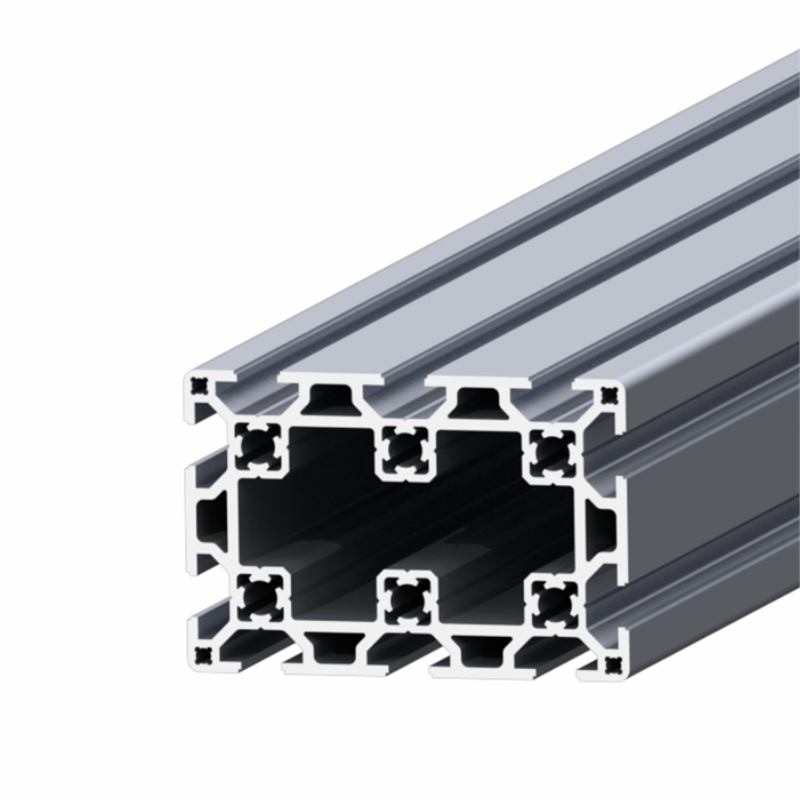

60×90 T-Slot Aluminum Profile Heavy

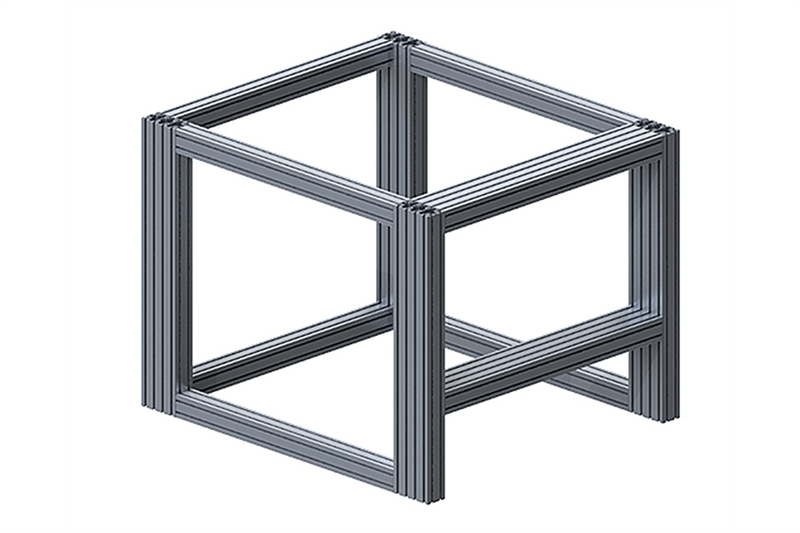

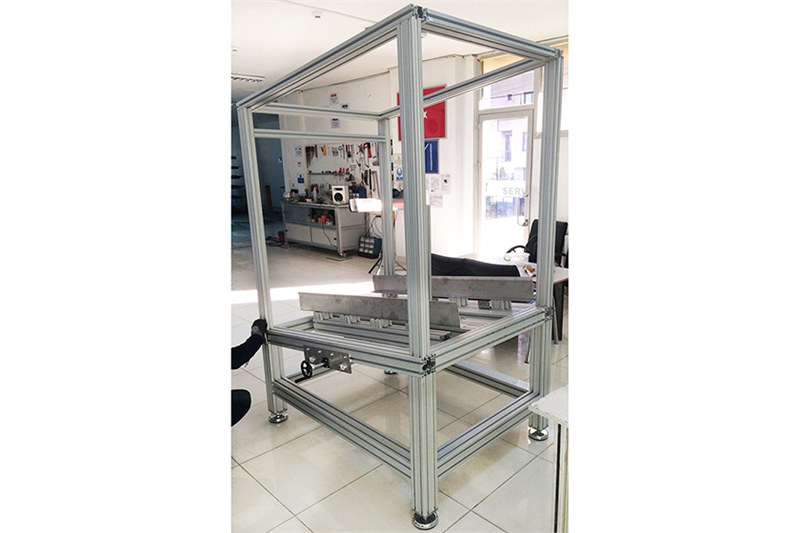

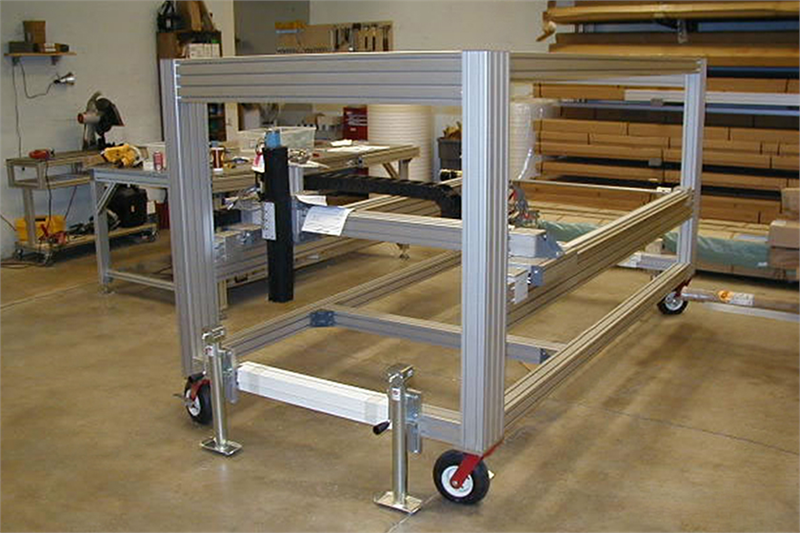

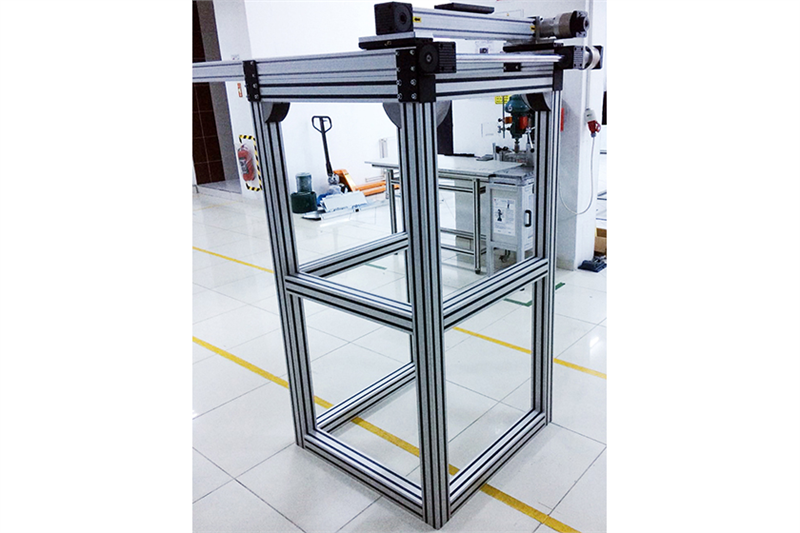

It is used as a carrier profile in machine chassis and large constructions that require high strength. It can also be used as a chassis for bearing axes with mechanical products that can be integrated onto it.
Description
It is used as a carrier profile in machine chassis and large constructions that require high strength. It can also be used as a chassis for bearing axes with mechanical products that can be integrated onto it.
Technical Specifications
| Part Number / SKU | 1.1.08.060090.01 |
|---|---|

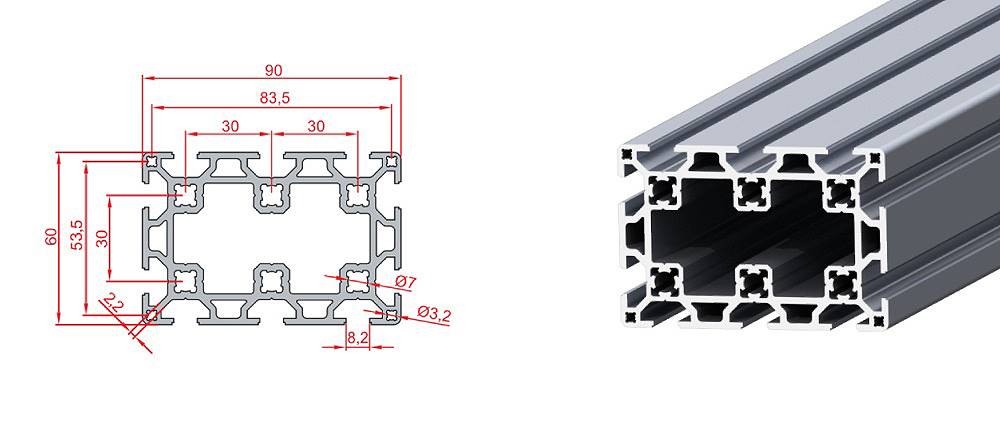

| Outer Dimensions | 60×90 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 64.63 cm⁴ |
| Moment of Inertia Iy (cm4) | 134.72 cm⁴ |
| Section Modulus Wx (cm3) | 21.55 cm³ |
| Section Modulus Wy (cm3) | 29.94 cm³ |
| Cross-Section Area (cm2) | 16.01 cm² |
| Mass / Weight (kg/m) | 4.37 Kg/m |
