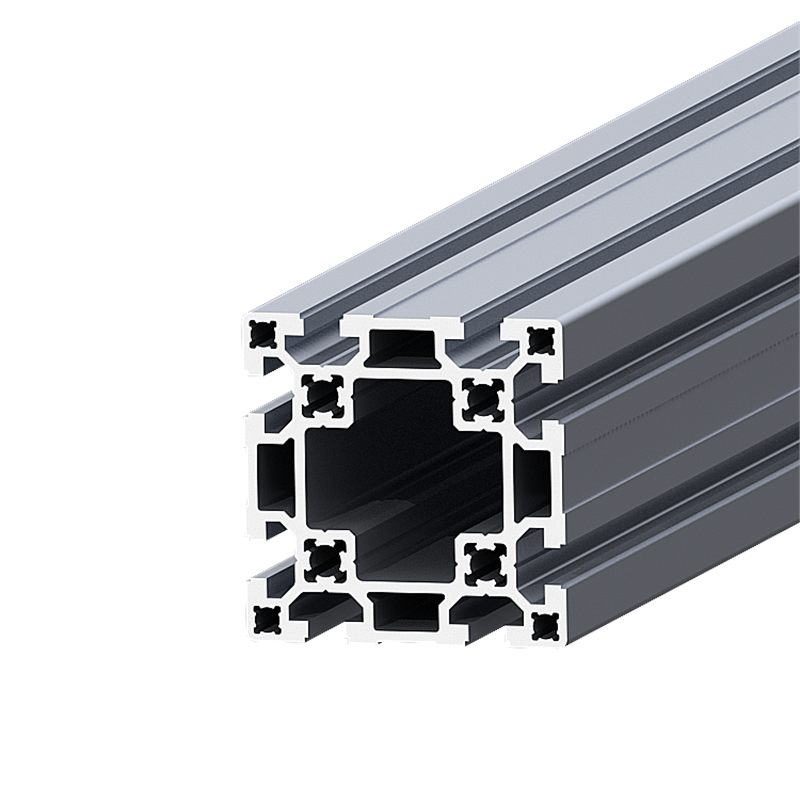

90×90 Heavy Sigma Profile
Description

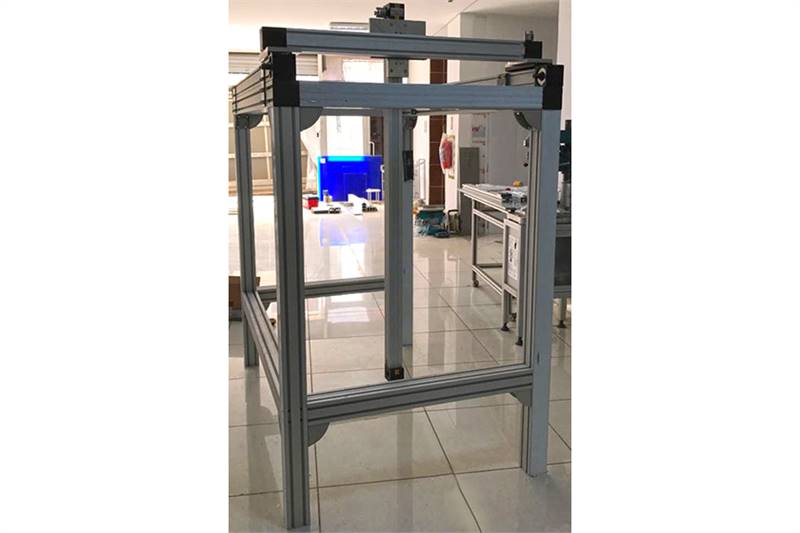

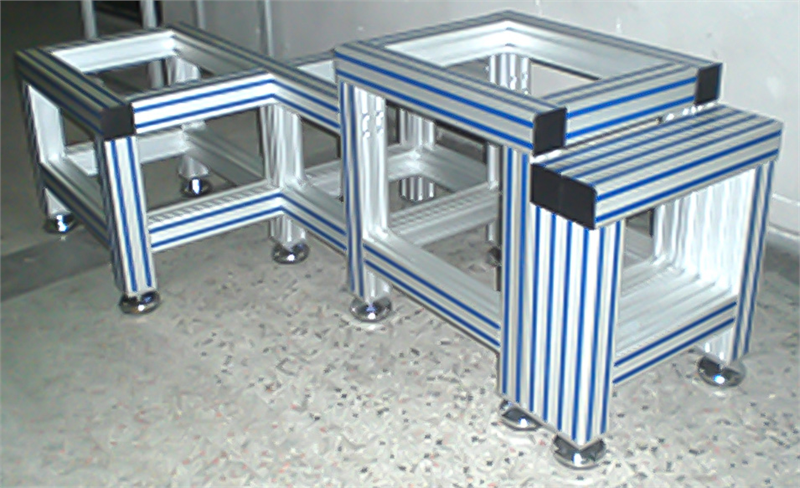

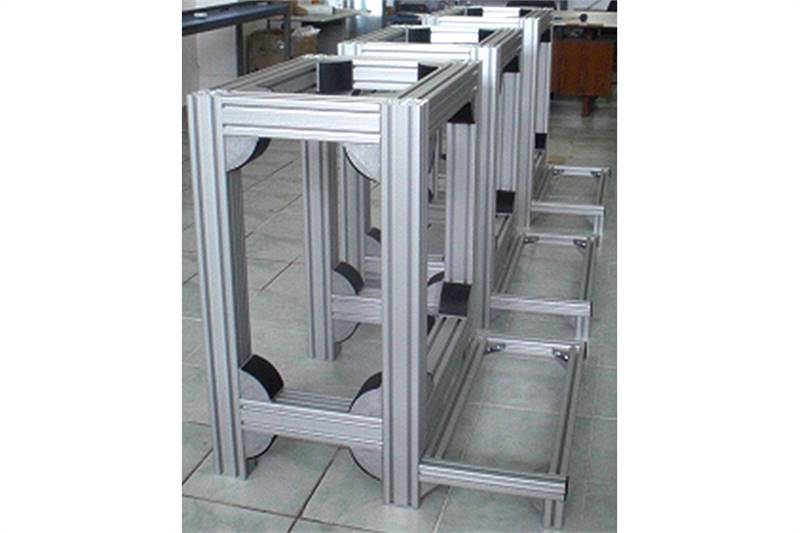

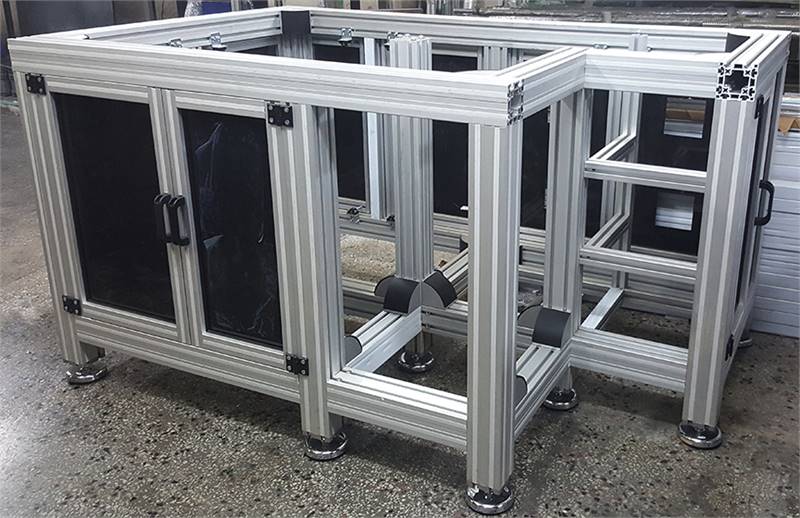

It is used as a carrier profile in machine frames and large constructions requiring high strength.
It can also be used as a bearing axis chassis with mechanical products that can be integrated on it.
Additional information

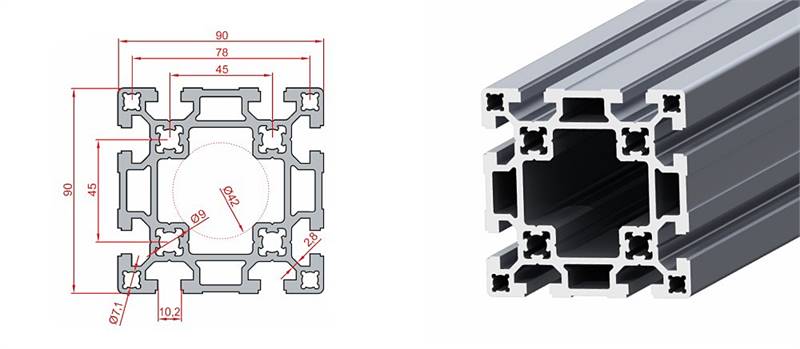

| External Dimensions | 90×90 |
|---|---|
| Material | 6063 T5 |
| L(mm) | 6000 |
| Ix | 220.54 cm4 |
| Iy | 220.54 cm4 |
| Wx | 49.01 cm³ |
| Wy | 49.01 cm³ |
| Area | 25.31 cm² |
| Mass | 6.82 Kg/m |
