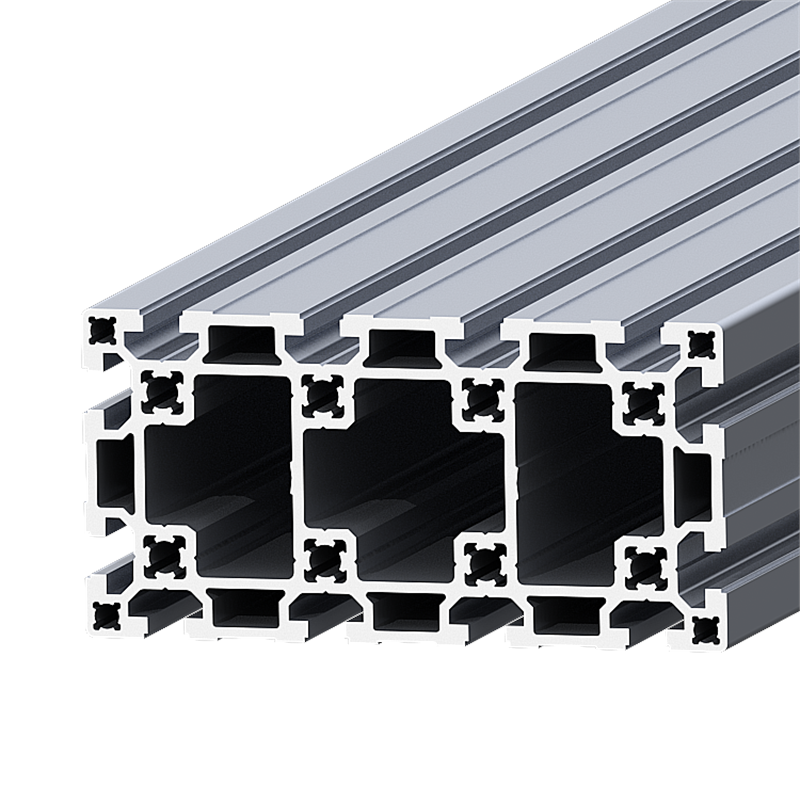

90×180 Heavy Sigma Profile
Description
It is used as a carrier profile in machine frames and large constructions requiring high strength.
It can also be used as a bearing body with mechanical parts that can be integrated on it.
Additional information

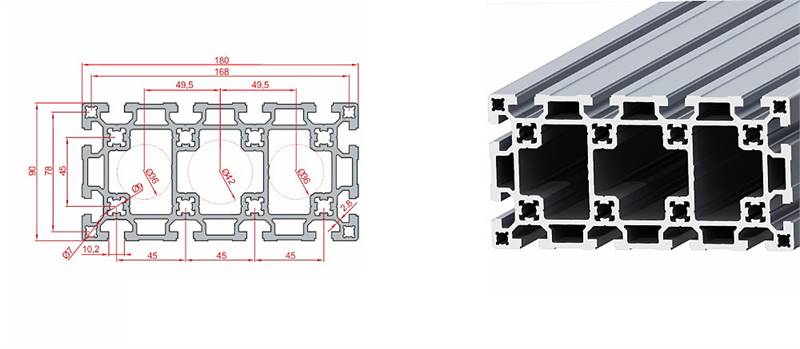

| External Dimensions | 90×180 |
|---|---|
| Material | 6063 T5 |
| L(mm) | 6000 |
| Ix | 428.25 cm4 |
| Iy | 1504.50 cm4 |
| Wx | 95.17 cm³ |
| Wy | 167.17 cm³ |
| Area | 46.82 cm² |
| Mass | 12.57 Kg/m |
