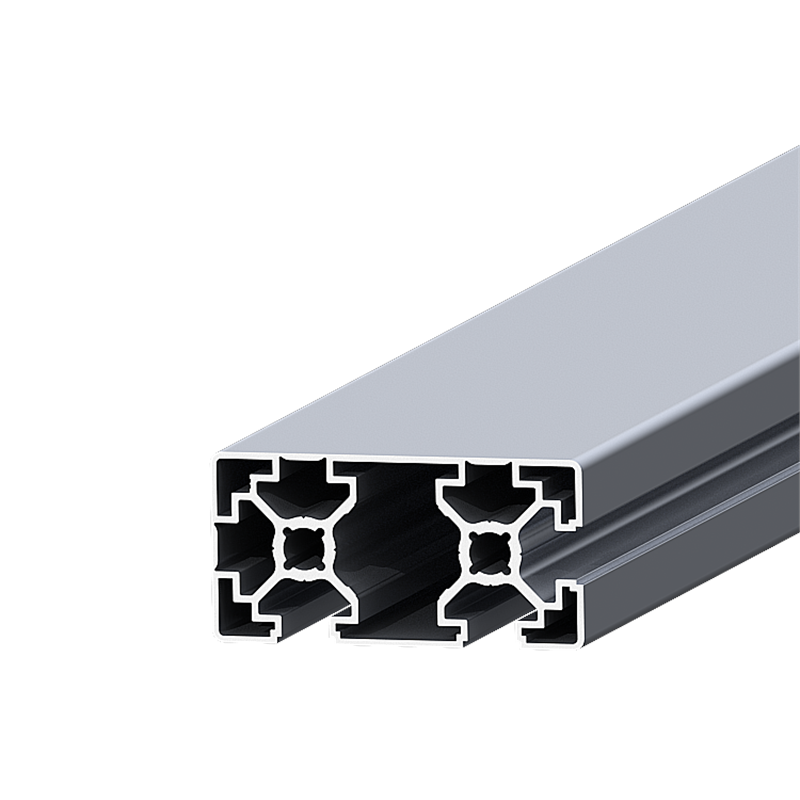

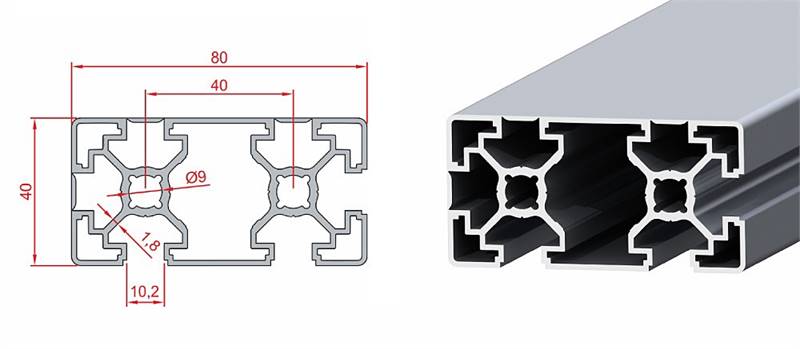

40×80 Closed Sigma Profile
Description
Due to the closed outer surface channels, it provides hygiene and an aesthetic appearance.

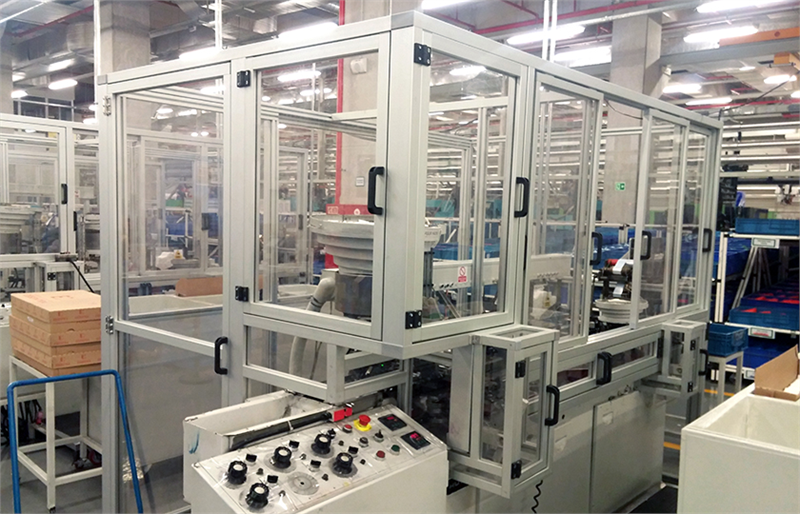

Filling machines, pharmaceutical production lines, packaging facilities are some areas of use.
Closed channels can be opened by tearing for the connections and accessories to be used.
Additional information
| External Dimensions | 40×80 |
|---|---|
| Material | 6063 T5 |
| L(mm) | 6000 |
| Ix | 12.84 cm4 |
| Iy | 50.93 cm4 |
| Wx | 6.22 cm³ |
| Wy | 12.56 cm³ |
| Area | 7.69 cm² |
| Mass | 2.20 Kg/m |
