100×100 Light T-Slot Aluminum Profile

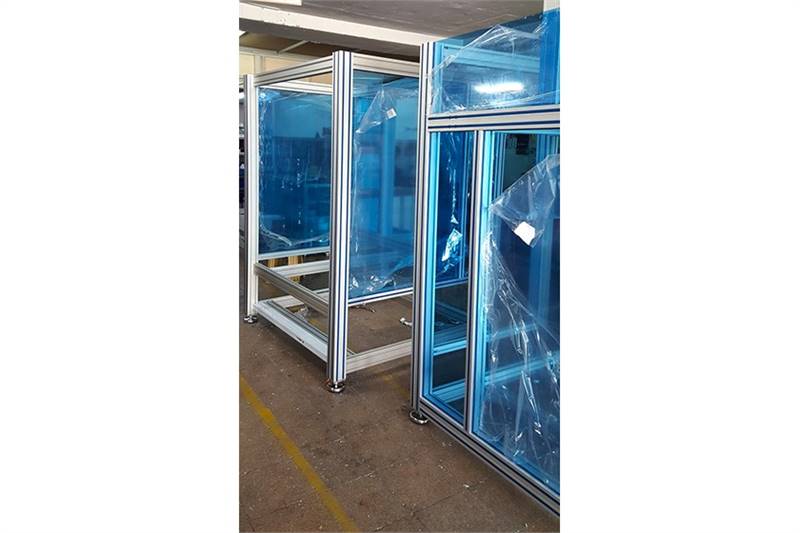

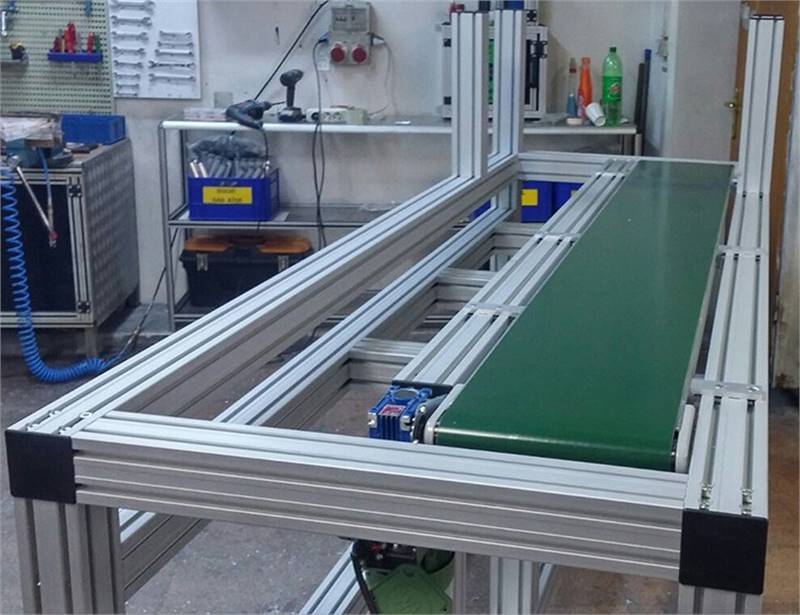

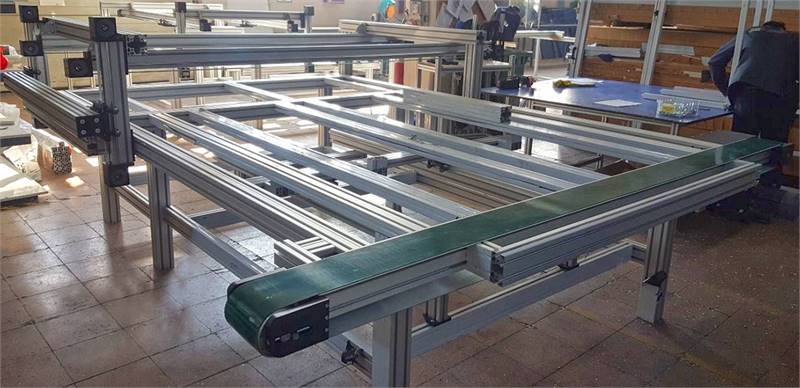

It is suitable for use in machine chassis requiring medium strength, intermediate partitions of large-sized panels, and ceiling beam applications. After installation, unused channels and front parts are closed with unique connection accessories to obtain an aesthetic appearance.
Description
It is suitable for use in machine chassis requiring medium strength, intermediate partitions of large-sized panels, and ceiling beam applications. After installation, unused channels and front parts are closed with unique connection accessories to obtain an aesthetic appearance.
Technical Specifications
| Part Number / SKU | 1.1.10.100100.02 |
|---|---|

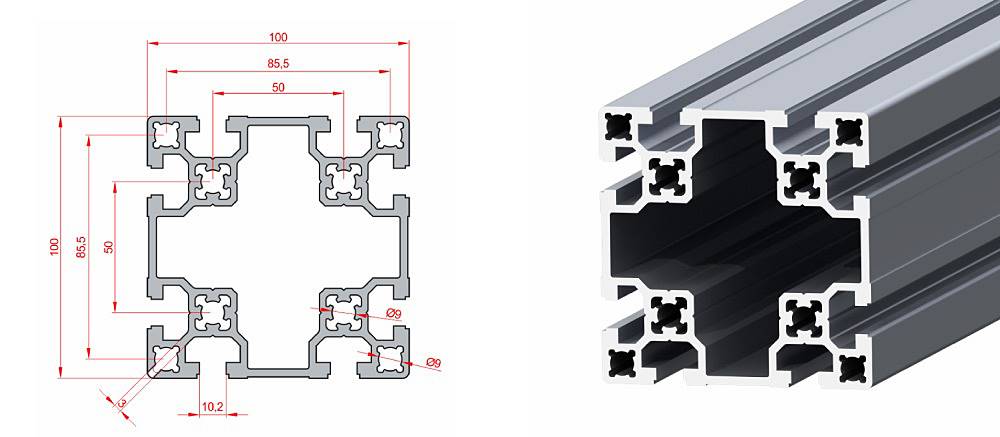

| Outer Dimensions | 100×100 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 295.46 cm⁴ |
| Moment of Inertia Iy (cm4) | 295.46 cm⁴ |
| Section Modulus Wx (cm3) | 59.01 cm³ |
| Section Modulus Wy (cm3) | 59.01 cm³ |
| Cross-Section Area (cm2) | 25.51 cm² |
| Mass / Weight (kg/m) | 7.08 Kg/m |
