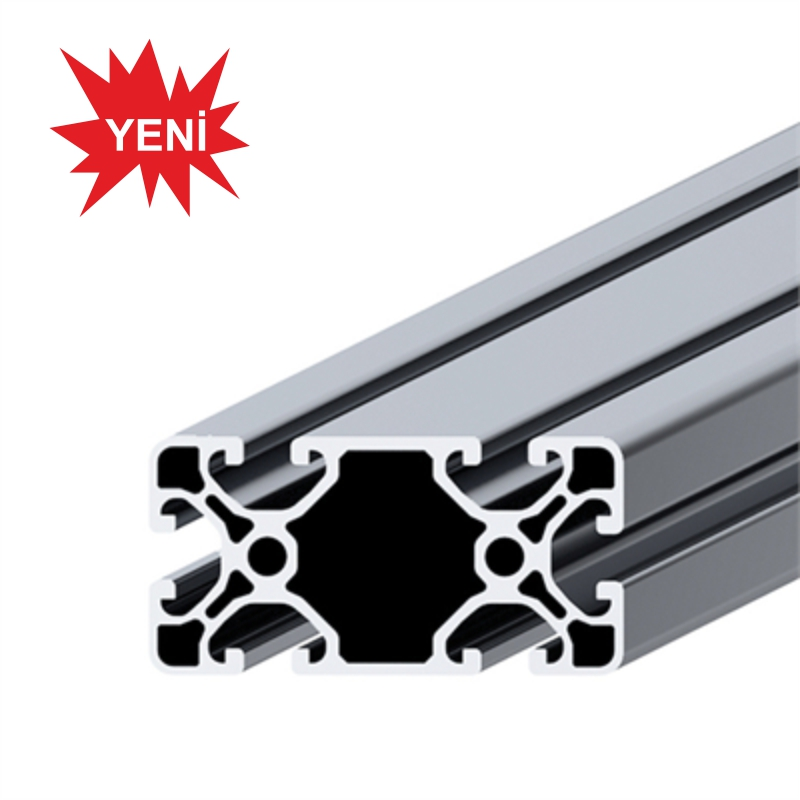

40×80 Super Light T-Slot Aluminum Profile – Special Series

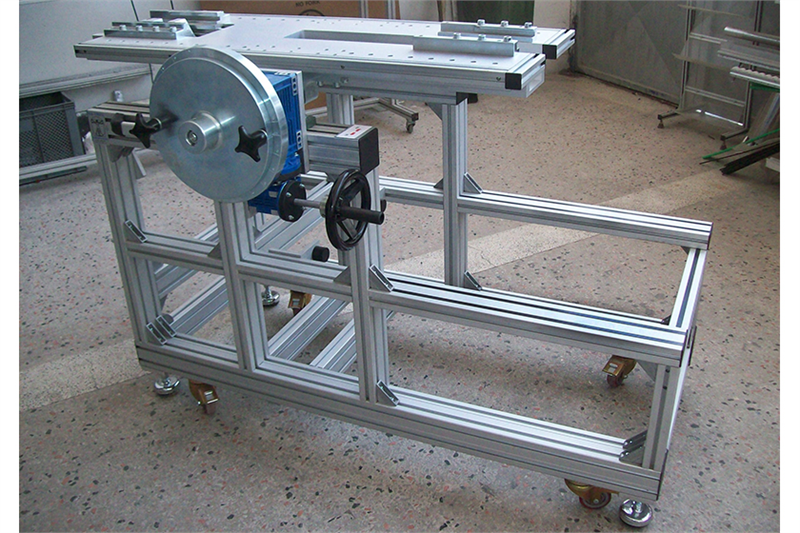

Side connections of machine chassis can be preferred in durable constructions, line groups and bodies with pneumatic connections.
Description
Side connections of machine chassis can be preferred in durable constructions, line groups and bodies with pneumatic connections.
Technical Specifications
| Part Number / SKU | 1.1.08.040080.03.1 |
|---|---|

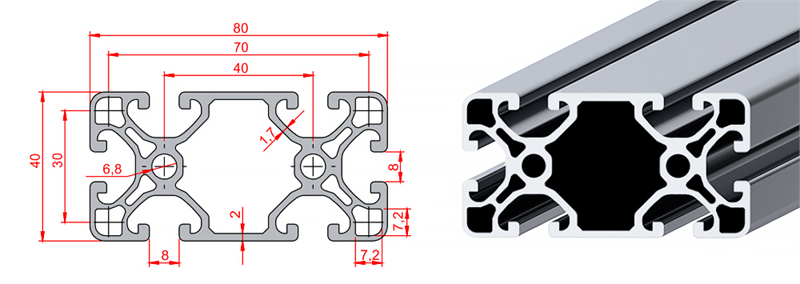

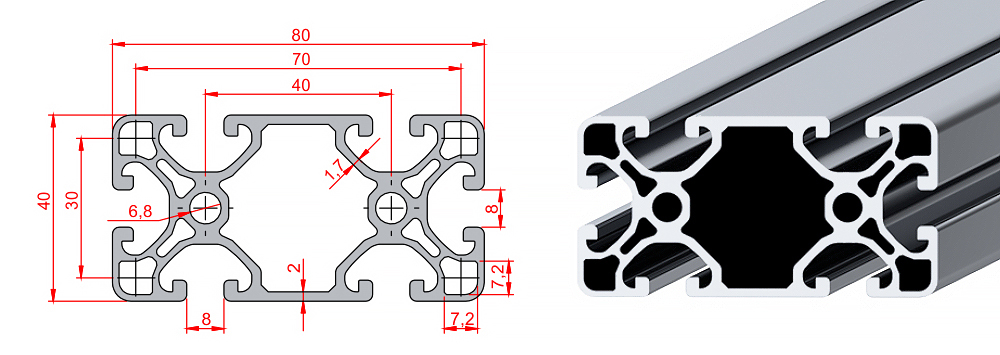

| Outer Dimensions | 40×80 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 22.79 cm4 |
| Moment of Inertia Iy (cm4) | 64.82 cm4 |
| Section Modulus Wx (cm3) | 15.19 cm³ |
| Section Modulus Wy (cm3) | 43.21 cm³ |
| Cross-Section Area (cm2) | 17.77 cm² |
| Mass / Weight (kg/m) | 2,47Kg/m |
