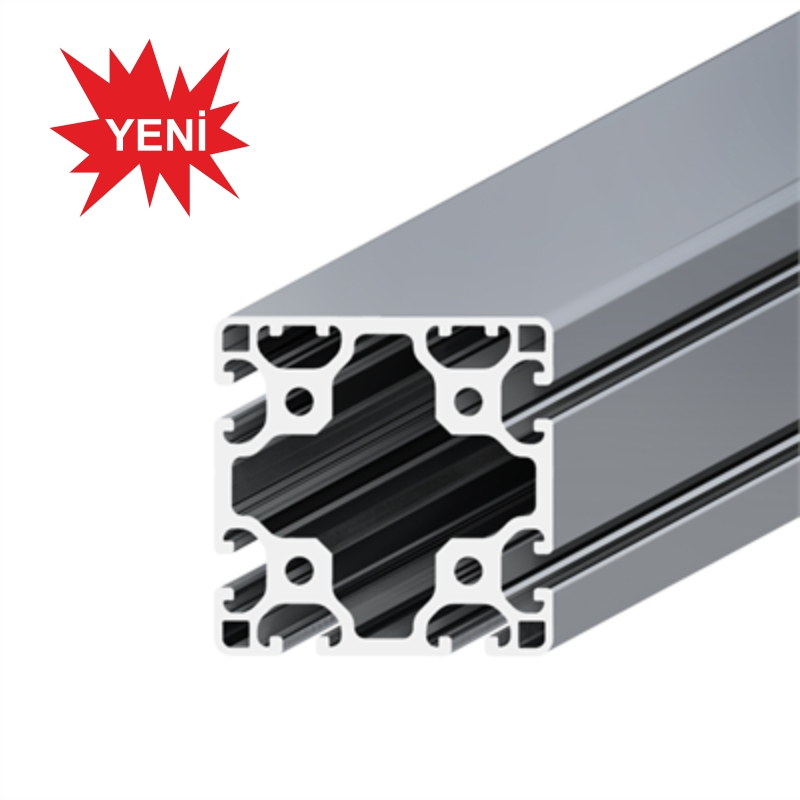

80×80 Single Surface Closed T-Slot Aluminum Profile – Special Series
It can be used in the poles of long partitions, in the decorative frames of ceilings and as carrier beams for spotlights.
Description
It can be used in the poles of long partitions, in the decorative frames of ceilings and as carrier beams for spotlights.
Technical Specifications
| Part Number / SKU | 1.1.08.080080.05.1 |
|---|---|

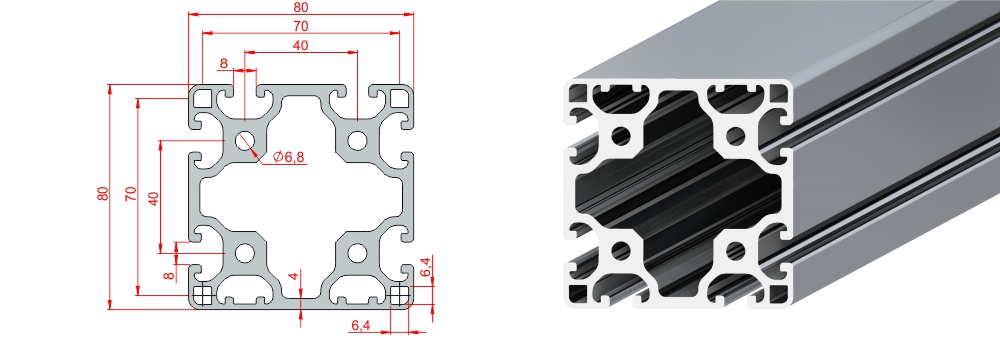

| Outer Dimensions | 80X80 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 263.65cm⁴ |
| Moment of Inertia Iy (cm4) | 240.62cm⁴ |
| Section Modulus Wx (cm3) | 131.83cm³ |
| Section Modulus Wy (cm3) | 120.32cm³ |
| Cross-Section Area (cm2) | 52.85cm² |
| Mass / Weight (kg/m) | 5,48Kg/m |
