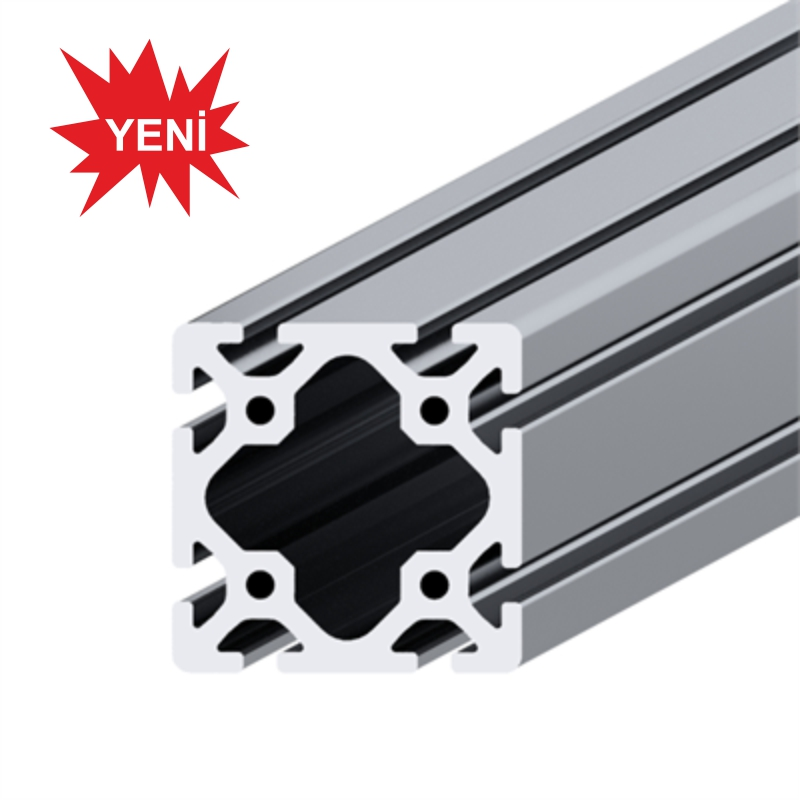

80×80 Heavy T-Slot Aluminum Profile – Special Series
It is suitable for use in machine chassis that require high strength. It provides strong connection thanks to its 2-channel feature.
Description
It is suitable for use in machine chassis that require high strength. It provides strong connection thanks to its 2-channel feature.
Technical Specifications
| Part Number / SKU | 1.1.08.080080.01.1 |
|---|---|

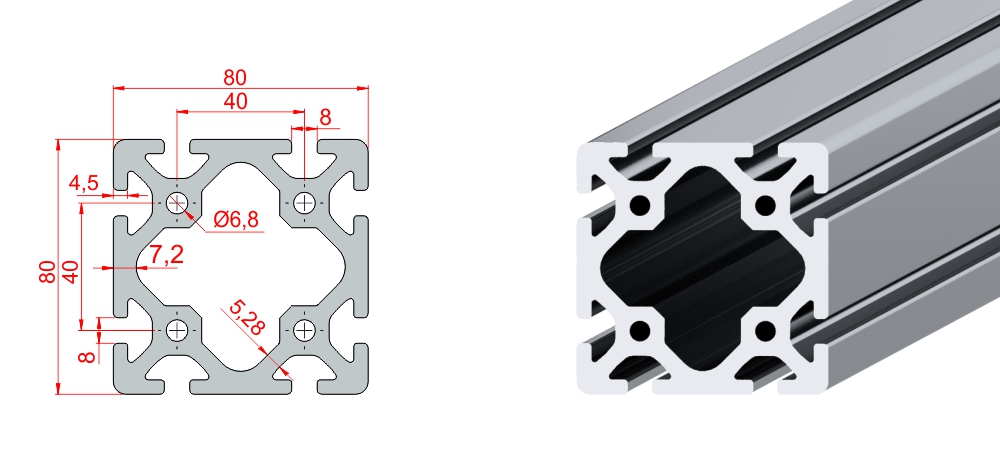

| Outer Dimensions | 80×80 |
| Material | 6063-T5 Anodized Aluminum |
| Length L (mm) | 6000 |
| Moment of Inertia Ix (cm4) | 295.49 cm⁴ |
| Moment of Inertia Iy (cm4) | 295.49 cm⁴ |
| Section Modulus Wx (cm3) | 73.87 cm³ |
| Section Modulus Wy (cm3) | 73.87 cm³ |
| Cross-Section Area (cm2) | 76.01 cm² |
| Mass / Weight (kg/m) | 7,25Kg/m |
